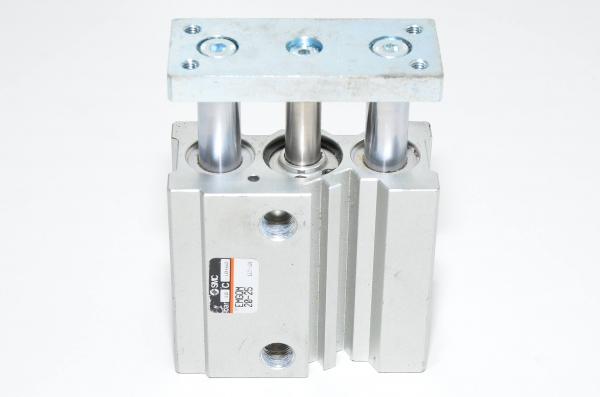

SMC EMGQM20-25 Compact Guide Cylinder, Slide Bearing

Quantity

pcs

Make an offer

Pneumatics
Air connection	G1/8
Cylinder bore size	20mm
Filtration rate	5µm
Guide type	Slide bearing
Magnetic piston	Yes
Max working pressure	1,0MPa (10bar)
Min working pressure	0,1MPa (1bar)
Non-rotating accuracy	+/- 0,07...+/-0,03 degrees
Operating medium	Compressed air, lubed or non-lube
Operating temperature	-10...60C
Operation	Double acting
Piston speed	50-500mm/s
Shock absorption	Absorption pads on both ends
Stroke	25mm
