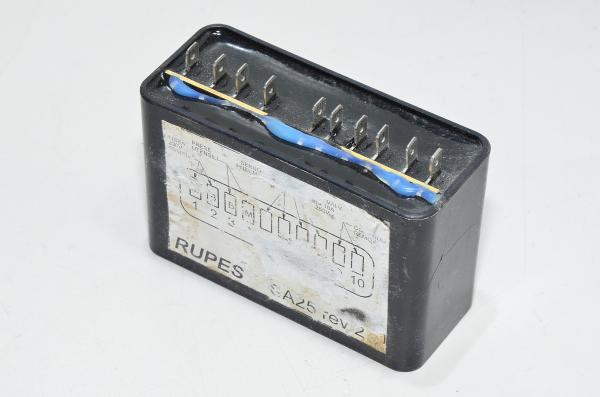

Rupes SA25 Rev2 load operated relay controller for intelligent vacuum line operation

Load operated relay controller for intelligent vacuum line operation.

How does this unit operate?

In short: connect your tool (e.g., a grinder) to the tool outlet. When the tool is operational, the relay controller senses the current draw and activates the remote control contacts, turning on the vacuum cleaner. Vacuum cleaner can also be turned on the same way by triggering the pneumatic flow switch when using compressed air. Upon activation the pneumatic valve is actuated which in turn opens up mechanically suction line passage, preventing debris from falling back through the suction line. Simple as that!

After turning off your tool (e.g., a grinder), (we presume) there is a small delay during which the suction line is closed. After some time, the remote control relay also turns off.

This controller can also be used for other innovative purposes in DIY projects, not just for tool-operated dust extraction.

Device's pinout:

• 1:
  • Phase (230VAC)
• 2:
  • Neutral (230VAC)
• 3:
  • Neutral, tool outlets (230VAC)
• 4:
  • Phase, tool outlets (230VAC)
• 5:
  • Pneumatic flow switch (NO kärjet) (if you use compressed air, vacuum cleaner turns on)
• 6:
  • Pneumatic flow switch (NO kärjet) (if you use compressed air, vacuum cleaner turns on)
• 7:
  • Relay contact for pneumatic valve operation max 250V/10A (For example use this for opening the vacuum's suction line)
• 8:
  • Relay contact for pneumatic valve operation max 250V/10A (For example use this for opening the vacuum's suction line)
• 9:
  • Relay contact for remote control max 250V/10A (for example use this for turning on the vacuum)
• 10:
  • Relay contact for remote control max 250V/10A (for example use this for turning on the vacuum)
