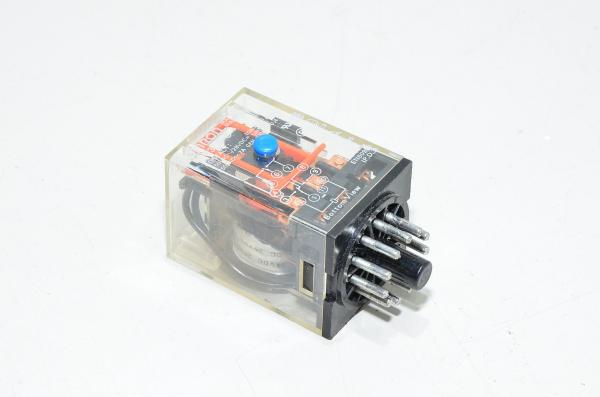

Omron MK3P5-S 11-pin Sub-Magnal B11A circular base general-purpose relay 250VAC/28VDC, 3PDT

Very simple but pretty convenient timer relay. Use Philips screwdriver to adjust the mode rotary switch for setting the operation mode, then adjust time scale and multiplier scale from bottom row rotary switches and then adjust a multiplier with the potentiometer. Refer to technical datasheet for schematics.

Relay technical details:

• Contact type:
  • 3PDT
• Contact ratings:
  • 10A, 120VAC, resistive
  • 10A, 28VDC, resistive
  • 10A, 250VAC, resistive
  • 7A, 250VAC, inductive
• Operating voltage:
  • 250VAC or 28VDC
• Plug in socket type:
  • According to IEC 60067 standard's sheet 67-II-18a
    • Socket is also known as:
      • 11pin Sub-Magnal base
      • B11A
      • PL11
      • PLE11-0
      • PL11-Q
      • Circular 11pin relay socket / relay base
• Contact resistance:
  • Max. 50mΩ
• Operate time:
  • AC:
    • Max. 20ms
  • DC:
    • Max. 30ms
• Operation temperature:
  • -10...40°C
• Humidity:
  • 35...85% RH

Download Omron H3CR-A/F/G/H series solid-state timer technical datasheet
