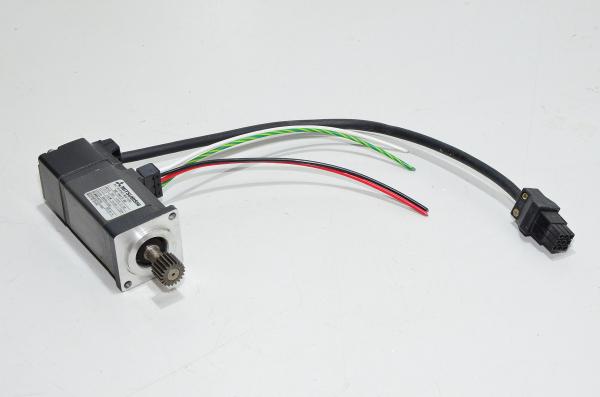

Mitsubishi HC-PQ13-UE AC servo motor

HC-PQ13-UE is an AC servo motor that operates as part of a closed-loop system, where the motor's position, speed, and torque are continuously monitored through a feedback loop. This enables precise motion control and responsiveness to load changes, which is essential for industrial automation applications such as robotics, CNC machining, and other systems requiring high accuracy.

Servo motor technical details:

• Shaft length:
  • 23mm
• Shaft diameter:
  • 8mm
• Cogwheel diameter:
  • 15,4mm
• Cogwheel width:
  • 11mm
• Body end flange mounting screws:
  • 2x M5
• Frame size:
  • 40,5x40,5mm
• Rated speed:
  • 3000rpm
• Rated torque:
  • 0,32Nm
• Max. torgue:
  • 1,28Nm
• Rated power:
  • 100W
• Rated output current:
  • 0,85A
• Max. output current:
  • 9A
• Input voltage:
  • 105VAC
• Operating temperature:
  • Specified performance at +40˚C ambient.
• Relative Humidity:
  • 90% Non condensing
• Servo motor encoder cable:
  • SC-HAJ3ENM1C03M-A1
• Standards:
  • IEC 60034 (IEC 34-1)
