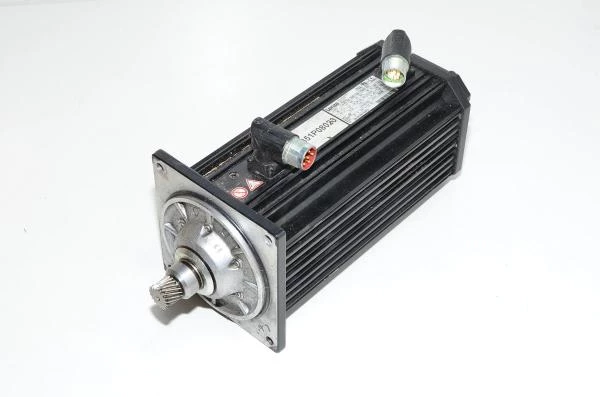

Lenze MCA 13I41-RS0P2-Z0D0-ST5S00N-R0SU 13291360 asynchronous servo motor, 1,7kW, 4050rpm with worn out cogwheel

A servo motor is an electric motor that is controlled to produce a precise motion. The Lenze MCA 13I41-RS0P2-Z0D0-ST5S00N-R0SU is a servo motor and gearbox combo designed for industrial automation applications. This unit is commonly used in applications requiring precise motion control and is part of Lenze's comprehensive range of servo motors. It supports various repair and supply options, including standard and emergency repair services, as well as refurbished and replacement units.

Servo motor technical details:

• Operating voltage:
  • 390VAC 3
• Max operating current:
  • 4.4A
• cos φ:
  • 0,76
• Rated power:
  • 1.7kW
  • 2.3hp
• IP rating:
  • IP54
• Torque:
  • 4.0Nm
• Insulation class:
  • F
    • Insulation materials can withstand continuous use at 155°C temperature
• Temperature sensor:
  • Motor has internal KTY type semiconductor based temperature sensor
• Frequency:
  • 140Hz
• Rotation speed:
  • 4050rpm
• Encoder type:
  • Resolver (most likely)
• Permanent magnet brake operating voltage:
  • 24VDC
• Permanent magnet brake braking torque:
  • 12Nm
• Permanent magnetic brake current:
  • 0,75A
• Shaft type:
  • Conical shaft
  • Shaft has a worn out cogwheel which requires changing
• Operating temperature:
  • 0...40°C
• Model markings:
  • MCA13I41-RS0P2 U
  • MCA 13I41-RS0P2-Z0D0-ST5S00N-R0SU
  • 13291360
• Motor option (configuration):
  • SAM8351P08023

Download Lenze MCA series asynchronous servomotors technical datasheet
