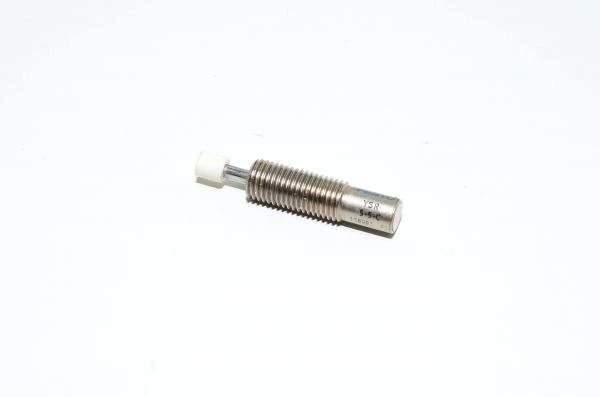

Festo YSR-5-5-C 158981 hydraulic shock absorber with cap

Hydraulic shock absorber from Festo. Can be fitted in various applications thanks to it´s self-adjusting design.

The YSR-C shock absorber key features:

• Self-adjusting shock cushioning characteristic curve
• Hydraulic shock absorber with path-controlled flow control function
• Short cushioning stroke
• Suitable for rotary drives
• Maintenance-free
• Continuous mounting thread

Shock absorbers can be found fitted in following Festo units:

• Linear drive DGPL
• Linear drive DGC
• Linear unit SLE

Shock absorbers technical details:

• Total lenght:
  • 40mm
• Stroke:
  • 5mm
• Thread size:
  • M8x1
• Lenght of threaded part:
  • 19mm
• Impact velocity:
  • 0.05-2m/s
• Ambient temperature:
  • -10...+80°C
• Reset time:
  • <0.2s
• Min insertion force:
  • 7.5N
• Max stop force in end positions:
  • 200N
• Min resetting force:
  • 0.9N
• Max energy absorption /stroke:
  • 1J
• Max energy absorption /hour:
  • 8000J
• Max residual energy:
  • 0.01J
• Permissible mass range up to:
  • 1.5kg
