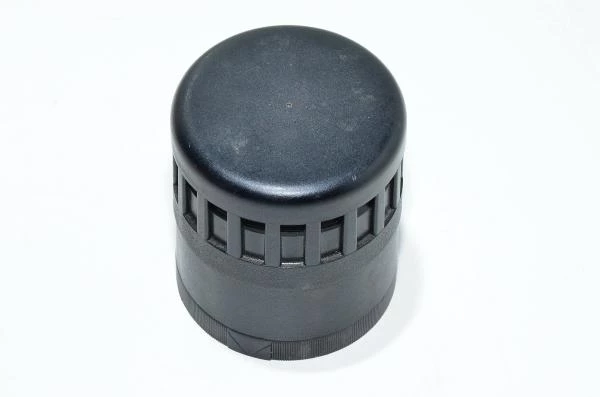

Auer Signal towermodulsignal70 module type STZ piezo buzzer module

Module technical information:

• Type:
  • STZ piezo summer modul (with multiple configuration options such as volume, tone frequencies adjustment, tone types)
• Max operating voltage:
  • 24VDC / 24VAC
• Max operating temperature:
  • 60°C
• Module coding method:
  • When stacking the pinout advances by one, ie. module placement in tower defines lamp pins. 5 possibilities in total (Always assembled as last unit in the tower).
• Module diameter:
  • 70mm
• Module attachment:
  • Bayonet mount
• Protection class:
  • IP65

Warning light module which is manufactured by Auer Signalgeräte. Module is part of towermodulsignal70 series light tower. Collect the pieces that you need and assemble exactly the kind of warning light that you want. The warning beacon is used for alert or just in general to inform the state of industrial automation device. Here is a few thoughts about the use of different colors:

• Red:
  • Device operation has been interrupted by severe error or dangerous situation.
• Yellow:
  • Device has some non fatal error messages.
• Blue:
  • Device raw material storage is empty or requires soon refilling.
• Green:
  • Device operates as it should.
