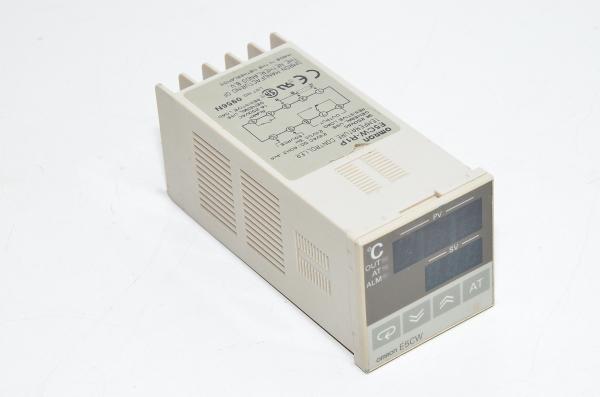

Omron E5CW-R1P digital temperature controller, PT100, 1x relay output, 1x alarm output, 24V

Compact and intelligent digital temperature controller.

• Measurement temperature range adjustment settings:
  • Setting 0:
    • -50...50°C
    • 1° resolution
  • Setting 1:
    • 0...50°C
    • 0,1° resolution
  • Setting 2:
    • -20...80°C
    • 1° resolution
  • Setting 3:
    • 0...99,9°C/°F
    • 0,1° resolution
  • Setting 4:
    • 0...200°C/°F
    • 1° resolution
  • Setting 5:
    • 0...300°C
    • 1° resolution
  • Setting 6:
    • 0...400°C/°F
    • 1° resolution
  • Setting 7:
    • 0...600°F
    • 1° resolution
  • Setting 8:
    • 0...800°F
    • 1° resolution
• Display:
  • PV display (process value, ie current value) with character height of 13,5mm
  • SV display (set value) with character height of 10mm
• Temperature sensor input:
  • PT100 platinum resistance thermometer
• Operating voltage:
  • 24VAC/24VDC
• Output:
  • 1x SPDT relay output 250V / 3A (control output)
  • 1x NO relay output 250V / 1A (alarm output)
• Power consumption:
  • 3W
• Installation hole:
  • 45x45mm
• Max panel thickness:
  • 10mm

Download Omron E5CW series digital temperature controller technical datasheet
