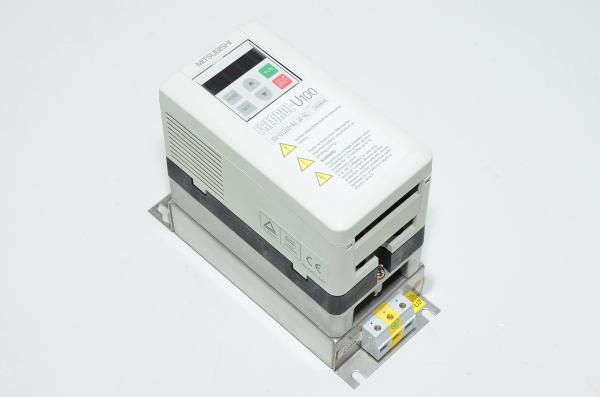

Mitsubishi Freqrol-U100 FR-U120S-N0.2K-EC frequency inverter, input 220-240VAC 3,9A output 3~ 220-240VAC 1.4A 0.5-120Hz 200W

The Mitsubishi Freqrol-U100 General Purpose Inverter is a fully enclosed, secure inverter with a digital display and easily configured keypad. Along with its compact size and efficient functionality, the Freqrol-U100 is manufactured with several safety features for added security and ease of operation. The inverter is equipped with an over-current shutdown, which shuts the inverter down when output reaches 200% value. The Freqrol-U100 also has a regenerative over-voltage and motor overload shutdown. The Freqrol-U100 is also equipped with a series of alarms to alert the user to any changes in functionality or performance. All together these features make the Freqrol-U100 an efficient choice when choosing a general purpose inverter. Inverter is mounted into F33.056/400 EMI/RFI filter, which is rated for 6A current.

Product code FR-U120S-N0.2K-EC explanation:

• U1: U100 series
• 2: 220-240 VAC
• S: Single phase input
• N: Low acoustic noise
• 0.2K: Inverter capacity in kW

Technical details:

• Operating voltage (single phase):
  • 220...240VAC
• Max input current:
  • 3,9A
• Output voltage (3-phase):
  • 220...240VAC (cannot exceed input voltage)
• Output frequency:
  • 0.5...120Hz
• Control method:
  • Sinusoidal wave PWM control
• Max output current:
  • 1.4A
• Rated output power:
  • 600W (when voltage is 240VAC)
  • Intended to be used with max 200W motors
• Overload current rating:
  • 150% 60s
  • 200% 0.5s
• IP-rating:
  • IP10
• Mounting:
  • 2x 5/10mm holes:
  • 2x5mm open end slots
• Operating temperature:
  • -10...50°C
• Connections:
  • Control input signal
  • Mains input (single phase)
  • Motor output (3-phase)
  • NC and NO alarm contact output
  • 12/24VDC NPN sinking input for logic (RUN/SU/FU)
  • Frequency meter input
  • Analog frequency control (3-pin connection for voltage dividing 1/2W 1kOhm potentiometer)

Download Mitsubishi Freqrol-U100 series general purpose inverter instruction manual
