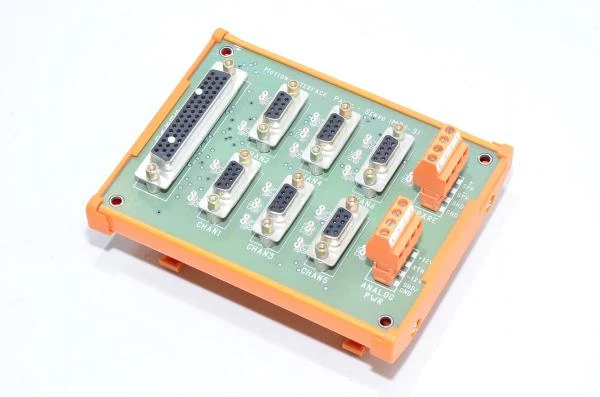

Adept MP6-S 30330-12470 servo motion interface panel 24VDC *new*

MP6-S 30330-12470 is a motion interface panel designed for encoder integration in automation systems. It serves as an encoder breakout board with six channels, facilitating precise motion control and feedback in robotics and industrial applications. The panel ensures compatibility with Adept's automation hardware, supporting advanced motion tasks through encoder data processing and connection to broader control systems.

Servo motion interface panel technical data:

• Operational voltage range:
  • 5...24VDC
• Operational current range, per channel:
  • ≤100mA
• Output-off leakage current:
  • ≤600µA
• Digital inputs:
  • 1x digital input (from the drive) to monitor for a Drive Fault (DF)
• Analog outputs:
  • 1x analog output (±10V) for Command Drive (CD)
  • 1x digital output (to the drive) for Drive Enable (DE)

Download Adept MP6-series machine motion interface panel technical datasheet
