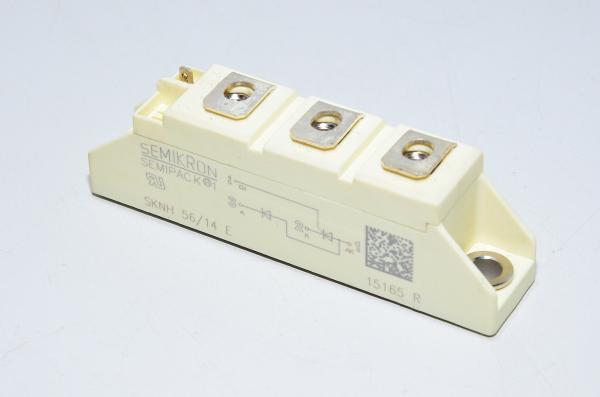

Semikron Semipack SKNH 56/14 E power semiconductor module with diode and thyristor 1400V 95A *new*

Power semiconductor module is usually a robust package housing some true power electronic components. The housing is typically made to be heat resistant and usually part of it has a surface, which is meant to be connected with cooling fin. These things can really push the electronic pixies around in masses.

Semiconductor module technical specs:

• Construction:
  • 1x Thyristor
  • 1x Diode
• Pinout:
  • 1 = Common anode
  • 2 = Thyristor kathode
  • 3 = Diode kathode
  • 4 = Thyristor gate
  • 5 = Thyristor gate
  • 6 = N/C
  • 7 = N/C
• Max current for continuous operation I_TRMS:
  • 95A
• Mean on-state current I_TAV sin 180, T_case=74°C:
  • 60A
• Peak forward surge current I_TSM with 10ms:
  • 1500A
• Max operating voltage V_RRM, V_DRM:
  • 1400V
• Max voltage slew rate dv/dt_cr:
  • 1000V/µs
• Rating for fusing t=8,3...10ms):
  • 11000A²s
• Gate triggering voltage V_GT:
  • 3V
• Gate triggering current I_GT:
  • 150mA
• Package:
  • SKNH 56
• Operating temperature range:
  • -55...150°C

Download Semicron Semipack 1 thyristor/diode modules SKKT, SKKH, SKKD, SKNH, SKKE, SKKL, SKND, SKMT series technical datasheet
