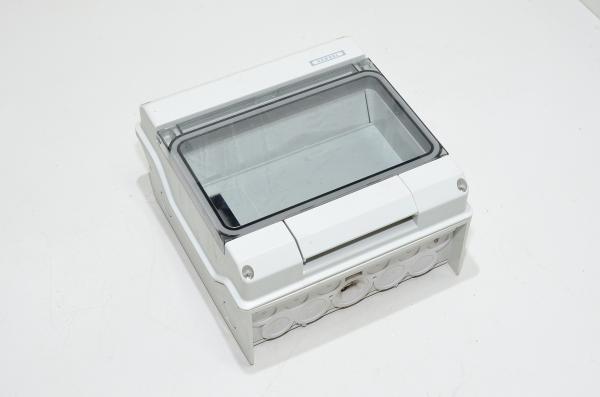

Hensel KV1509 modular enclosure, IP54, 400VAC

Residual current devices and fuses can be conveniently installed directly onto the DIN rail in a modular electrical cabinet. In this cabinet, the control devices/indicators for electrical equipment are visible directly through the cover. This type of electrical cabinet may also be referred to as a fuse box, panel, or modular cabinet.

Consumer unit technical details:

• Brand:
  • Hensel
• Product series:
  • Enyboard
• Number of modules:
  • 9
• Locking type:
  • By turn handle
• Configuration type:
  • Assembled with DIN-rail
• Cover plate type:
  • Door
• Mounting type:
  • Surface mounting
• Door type:
  • Single
• Door surface finishing:
  • Transparent
• Housing material:
  • Plastic
• Cover style:
  • Closed
• Color:
  • RAL 7035 - Light grey
• Feed-through diameters:
  • Up:
    • 8x 7...16mm
    • 2x 10...20mm
    • 1x 10...24mm
  • Down:
    • 8x 7...16mm
    • 2x 10...20mm
    • 1x 10...24mm
• Degree of Protection:
  • IP65
• Protection class:
  • Isolated (Class II)
• Glow wire test:
  • 750ºC
• Fire rating:
  • UL 94 V-2
• Operating temperature:
  • -25...+80ºC
