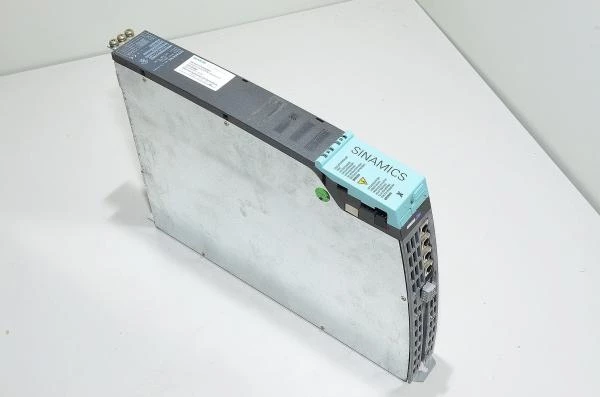

Siemens Sinamics 6SL3120-2TE15-0AA0 Sinamics double motor module, input 510-600VDC, output 3~ 400VAC 2x 5A
- Manufacturer:
Siemens - Model:
Siemens Sinamics 6SL3120-2TE15-0AA0 - Dimension:
410 x 50 x 271 mm - Weight:
5189 g - Availability: 1pcs
- Condition: Used
-
Price Including VAT: 1587.20€
- Ex Tax: 1280€
Siemens 6SL3120 drive module manages 2 servo motors which itself manages 2 axis (3A/3A), it belongs to the SINAMICS S120 drive system and to the double motor modules type. Here are the different characteristics of this drive module for spindle motors. Double motor module communicates with one CU320 control unit or Sinumerik system via DRIVE-CLiQ interface. It can be connected through its different sockets mounted at the ends of the drives and through its DC link mounted on the front.
Motor controller technical details:
- Input voltage:
- 510-600VDC
- DC link current:
- 12A
- DC link busbar current capacity:
- 100A
- DC link capacitance:
- 220µF
- Max current requirement for 24VDC:
- 1A
- 24VDC busbar current capacity:
- 20A
- Efficiency:
- 97%
- Power loss with internal air cooling:
- 0,105kW
- Rated power at 600VDC:
- 2x 2,7kW
- 2x 3HP
- Rated power at base load current:
- 2x 2,3kW
- 2x 2,5HP
- Output voltage:
- 3~ 400VAC
- Rated output current:
- 2x 5A
- Max rated output current for S6 duty (40%):
- 2x 6A
- Base load current:
- 2x 4,3A
- Max output current:
- 2x 10A
- Motor and motor brake connections:
- X1 and X2 plug in connections
- max 30A
- X1 and X2 plug in connections
- Shield connections:
- X1 and X2
- PE connection:
- On the housing M5
- Max motor cable length:
- Shielded:
- 50m
- Unshielded:
- 75m
- Shielded:
- Cooling:
- Internal fan
