Sony Multiport connector with PCB model 2 *new*

Connector for making your own thingies into Sony DSLR cameras. Make your own remote trigger, connect your own charger or control it through serial port...And lot

Multiport connector technical details:

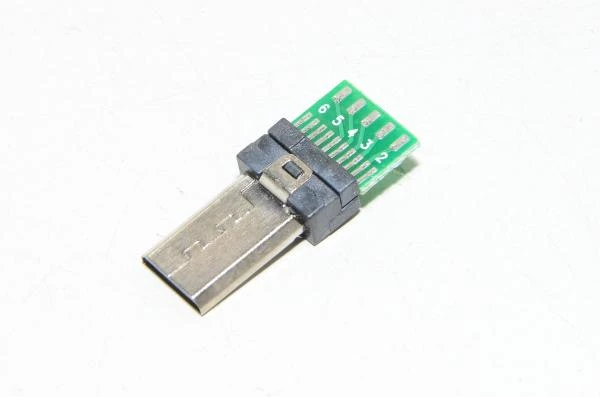

• Pins present on PCB with solder pads:
  • Pin 2
    • GND (Ground)
  • Pin 3
    • Composite video output
  • Pin 4
    • Shutter (operated by grounding) / Audio L
  • Pin 5
    • Focus (operated by grounding) / Audio R
  • Pin 6
    • Mode select, connected to pin 2 (the jump can be easily cut from the back side) (can be connected with 100k resistor into pin 10 or ground for selecting operation mode)
  • Pin A1
    • USB power supply +5VDC
  • Pin A2
    • USB data -
  • Pin A3
    • USB data +
  • Pin A4
    • USB ID
  • Pin A5
    • USB power supply ground
  • Other pins are also present in the connector, but they do not have a solder pad for additional wire
  • Video and audio outputs are not in use when camera is used in wired remote mode
