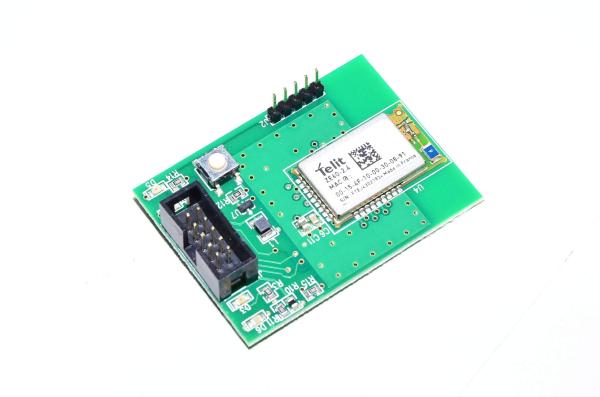

Telit ZE60-2.4 ZigBee radio module 2.4GHz 16 channel 250kbps 100mW 2.2-3.6V RS232 TTL PCB assy *new*

The ZE60-2.4 is the extended version of the low cost ZE50-2.4 fully compatible and with the same form factor, having link allocation of 118dB and 100mW output power that operates in industrial temperature range from -40...85°C.

The ZE60-2.4 is compact, SMD, and complete ZigBee-ready modules that supports Full Function Device (FFD) and Reduced Function Device (RFD) operation with IEEE 802.15.4 compliant PHY and MAC layers. Module is equipped with an integrated antenna.

Telit ZE60-2.4 ZigBee radio module technical details:

• Performance
  • Range:
    • Up to 1500m
  • Output Power:
    • 100mW, 20dBm
  • Serial Data Rate:
    • Up to 115.2Kbps
  • Radio Data Rate:
    • 250Kbps
  • Sensitivity (BER < 10 -3 ):
    • -98dBm
• Networking
  • Frequency:
    • 2400...2483.5MHz
  • Channels:
    • 16
  • Modulation:
    • DSSS
    • QPSK
  • Serial interface:
    • RS232 TTL (Tx, Rx, Cts, Rts)
  • Hayes Mode:
    • Yes
  • ZigBee stack:
    • Yes
  • Download Over-the-Air:
    • Yes
  • Compliant to following standards:
    • EN 300 440 and EN 300 328 (Europe)
    • FCC CFR 47 part 15 (US)
    • ARIB STD-T66 (Japan)
• Power Requirements
  • Power supply:
    • 2.2...3.6V ± 5%
  • Board consumption at 3.6V:
    • Rx:
      • 40mA
    • Tx:
      • 125mA
    • Standby:
      • 2μA
• Physical Properties
  • Board dimensions:
    • 55x40x12mm
  • Embedded module dimensions:
    • Rectangular 26x15x3mm
  • Operating temperature range:
    • -40...+85°C

Download Telit ZE60-2.4 RF module technical datasheet
