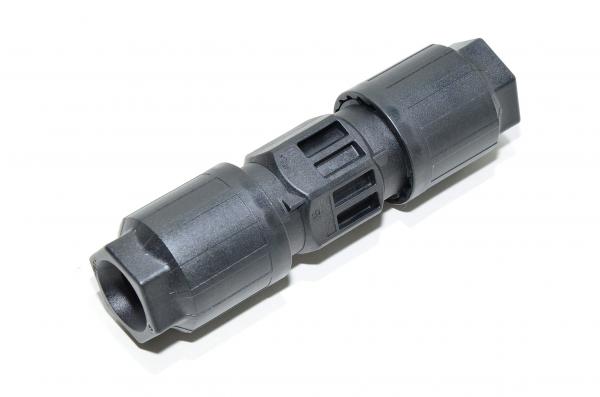

Phoenix Contact Quickon power distribution system QPD C 4PE2,5 2x9-16 BK 1403836 3~ quick extension connector *new*

Quickon power distribution (QPD) is a quick connector system developed by Phoenix Contact. This system contains chassis connectors for appliances, extension pieces, splitters and bulkheads. All of these are IP68 or IP69 rated and sturdy (IK07 classification). Installation of these cables into the cable is easy. Just peel of piece of cable's outer sheath, thread in the insulated wires into their respective places, use sidecutters to cut out excess and twist the connector pieces together. Easy and fast.

Connector technical details:

• Number of pins in connector:
  • 5x
• Max operating voltage:
  • 690V
• Max rated current:
  • 20A
• Compatible cable diameter:
  • 9...16mm cable
• Compatible conductor size:
  • 1...2,5mm²

Download Phoenix Contact QPD C 4PE2,5 2x9-16 BK 1403836 3~ quick extension connector technical datasheet
