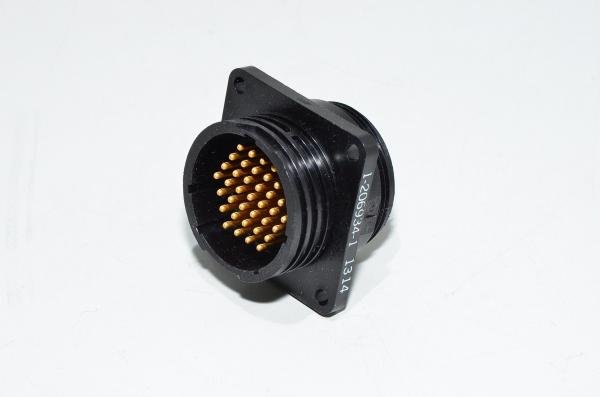

AMP 1-206934-1 37pin shell size 23 standard gender male plastic circular connector with standard A keying configuration *new*

Circular multipin connector for industrial and commercial appliances made by AMP or known also as Amphenol. Now days connector is manufactured by TE, ie. Tyco Electronics. The connector type is referred as CPC (Circular Plastic Connector)

Connector technical details:

• Max rated voltage:
  • Not indicated (at least clearly)
• Connector type:
  • 37pin shell size 23 standard gender male circular multipole connector
• Max current consumption:
  • Is indicated in datasheet (somewhat cryptically, but it apparently depends on usage)
• Installation method:
  • Panel mount chassis, with PCB mounted pins
• Connector's mating thread
  • 1-3/8 - 18 UNEF-2A
• Connector's mounting plate dimensions:
  • 44,4x44,4x4mm

Download AMP circular commercial and current application connectors product catalog
