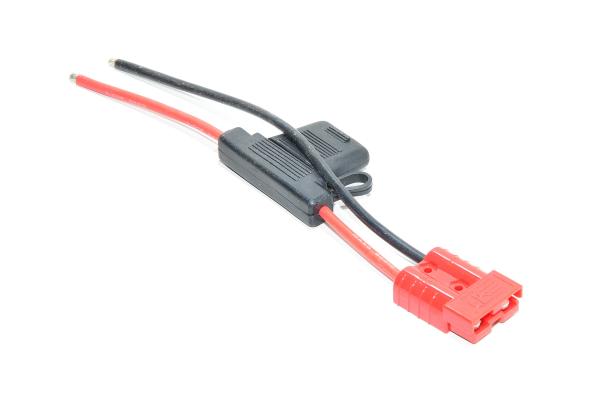

Sheng En Di male battery connector plug for forklifts 50A/600VDC red with maxi GM fuse box

Automotive battery connector and these can be found mainly in forklifts, but occasionally you might see them also in some mobile elevating work platforms or cleaning machines. Connector is intended for connecting the device to the battery pack or respectively charger to the battery pack. Needless to say, that the connection and disconnection is always done without any load (if of course your goal is not to weld the connectors together)

Connector technical information:

• Contact material:
  • Copper plated with silver
• Insulator material:
  • PC UL94V-0
• Conductor cross-section:
  • 1,3...13,3mm²
• Conductor cross-section;
  • AWG16...6
• Connection method:
  • By soldering
• Polarity:
  • Male, used as a connector for charger or machine end
• Flame retardant grade:
  • V0
• Insulation color:
  • Red
• Max current rating:
  • 50A
• Operating temperature range:
  • -20…+105°C
• Cable length:
  • 26cm
