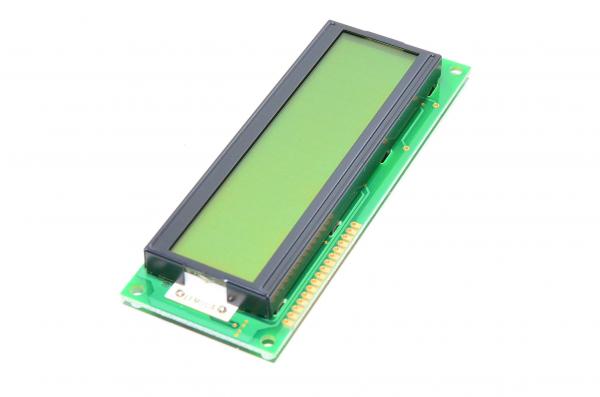

16x2 122x44x13,5mm 5VDC green/black Solomon LM1125SYLU1 alpha numeric dot matrix LCD display module *new*

LCD display for replacing a broken one or for creating something new. This LCD display can be used easily with Arduino, Raspberry Pi, Intel Edison or any other embedded system you want to work with.

LCD display technical details:

• Operating voltage:
  • 5VDC
• Display color:
  • Green
• Character color:
  • Black
• Display type:
  • STN or TN alphanumeric dot matrix LCD display
• Controlling method:
  • Classic Hitachi HD44780 compliant
• Nominal PCB dimensions:
  • 122x44x13,5mm (actual units +/-0.2mm)
• Display element outer dimensions (measured from actual unit):
  • 104.85x36x9mm
• Electrical connection:
  • 16x gold plated double sided solder pads with 1mm holes, 2.54mm pitch
• Display construction:
  • 16x characters on 4x lines, each character has 8x5 pixels
• Character dimensions:
  • 4.75x2.9mm (or something close to this)
• Operating temperature:
  • -20...70°C

LCD display module pinout:

1. VSS (Ground, ie -)
2. VCC (+5V)
3. V0 (Contrast adjustment)
4. RS (Register Select, RS). RS=0: Command, RS=1: Data
5. RW (Read/Write, R/W). R/W=0: Write, R/W=1: Read (This pin is optional due to the fact that most of the time you will only want to write to it and not read. Therefore, in general use, this pin will be permanently connected directly to ground.)
6. E (Clock) (Enable). Falling edge triggered
7. D0 (Bit 0) (Not used in 4-bit operation)
8. D1 (Bit 1) (Not used in 4-bit operation)
9. D2 (Bit 2) (Not used in 4-bit operation)
10. D3 (Bit 3) (Not used in 4-bit operation)
11. D4 (Bit 4)
12. D5 (Bit 5)
13. D6 (Bit 6)
14. D7 (Bit 7)
15. A (Backlight LED Anode, +) Note that the pin is located on the other side of 1st pin!
16. K (Backlight LED Kathode, -) Note that the pin is located on the other side of 1st pin!

Check more detailed info on LCD displays controlled with Hitachi HD44780 LCD controller chip

Download Eone Electronics 1602A-1 LCD display technical dataseheet (similar LCD)
