LC-Electronics MAX485CSA TTL level RS-485 and RS-485 serial communication converter module *new*

  • LC-Electronics MAX485CSA TTL level RS-485 and RS-485 serial communication converter module *new*
    LC-Electronics MAX485CSA TTL level RS-485 and RS-485 serial communication converter module *new* LC-Electronics MAX485CSA TTL level RS-485 and RS-485 serial communication converter module *new* LC-Electronics MAX485CSA TTL level RS-485 and RS-485 serial communication converter module *new*
  • Manufacturer:
    LC-Electronics
    LC-Electronics
  • Model:
    LC-Electronics RS-485 TTL to RS-485 converter module *new*
  • Dimension:
    44.30 x 14.15 x 20 mm
  • Weight:
    4 g
  • Availability: 87pcs
  • Condition: New
  • Price Including VAT: 2.48€

  • Ex Tax: 2€
pcs


Make an offer

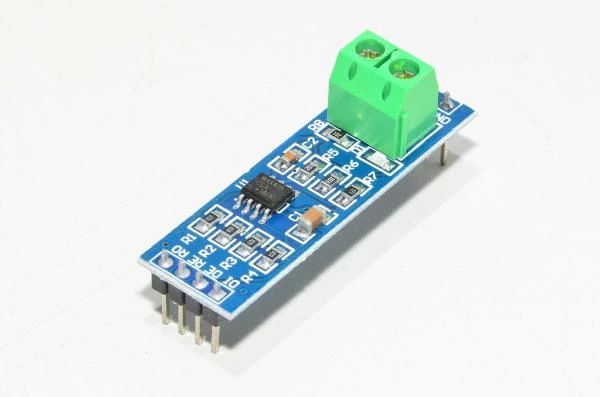

Serial communication module for converting TTL level RS-485 signal into RS-485 signal. Fairly simple module for making your Arduino or other microprocessor projects receive and transmit the TTL level RS-485 communication signal without releasing the magic smoke.

Module technical details:

  • PCB nominal dimensions:
    • 44,3x14,15x1,2mm
  • I/O
    • 4pin header
      • DI - Driver in (the transmitter pin)
      • DE - Driver enable (enabled when this pin is HIGH)
      • RE - Receiver enable (enabled when this pin is LOW)
      • RO - Receiver out
    • 4pin header
      • VCC (+5VDC)
      • B - Connect to pin B of the other 485 IC
      • A - Connect to pin A of the other 485 IC
      • GND (-)
    • Screw terminal block
      • B - Connect to pin B of the other 485 IC
      • A - Connect to pin A of the other 485 IC
  • Operating voltage:
    • 5VDC
  • Tranceiver chip
    • MAX485CSA

Download Maxim Integrated MAX481, MAX,483, MAX485, MAX487, MAX488, MAX489, MAX490, MAX1487 low-power, slew-rate-limited RS-485/RS-422 tranceiver integrated circuits technical datasheet

Write a review

Please login or register to review

Tags: MAX485-series, MAX485CSA, LC-Electronics, Maxim Integrated, RS-485, TTL converter, tranceiver, TTL, PCB
