Slide bearing guide assembly 65x120x105mm with 2x 240x20mm guide shafts + 216x120x15mm mounting bracket
- Manufacturer:
Unknown manufacturer - Model:
Slide bearing assembly 65x120x105mm 2x 240x20mm guides + bracket - Dimension:
270 x 216 x 120 mm - Weight:
4137 g - Availability: 1pcs
- Condition: Used
-
Price Including VAT: 35,14€
- Ex Tax: 28€

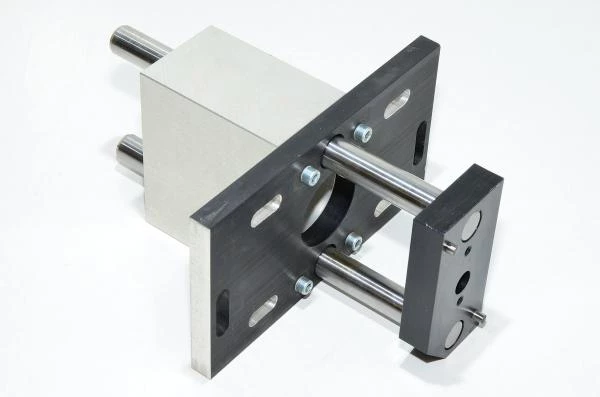

Guide assembly with 2x steel shafts and 4x slide bearings (one on each end).
Technical information:
- Guide unit type:
- 65x120x105mm aluminium chunk with slide bearings mounted in them
- Guide shaft size:
- 240x20mm
- Distance between the centers of guided shafts:
- 88mm
- Center hole diameter:
- 51/37mm (has C-type retaining ring inside)
- Mounting bracket dimensions:
- 216x120x15mm
- Mounting bracket holes:
- 2x 11x36mm
- 4x 10x26
- Endplate mounting holes:
- 1x 16/9mm
- 2x M6
- 2x 6mm indexing pins
Tags: rod, guide unit, guide, slide bearing, 20mm, 240mm, shaft
