Clamp module with Festo ADN-50-60-I-P-A compact cylinder *KESKEN*

  • Clamp module with Festo ADN-50-60-I-P-A compact cylinder *KESKEN*
    Clamp module with Festo ADN-50-60-I-P-A compact cylinder *KESKEN* Clamp module with Festo ADN-50-60-I-P-A compact cylinder *KESKEN* Clamp module with Festo ADN-50-60-I-P-A compact cylinder *KESKEN*
  • Manufacturer:
    Unknown manufacturer
    Unknown manufacturer
  • Model:
    Clamp module with Festo ADN-50-60-I-P-A compact cylinder
  • Dimension:
    355 x 143 x 195 mm
  • Weight:
    8360 g
  • Availability: 1pcs
  • Condition: Used
  • Price Including VAT: 213,35€

  • Ex Tax: 170€
pcs


Make an offer

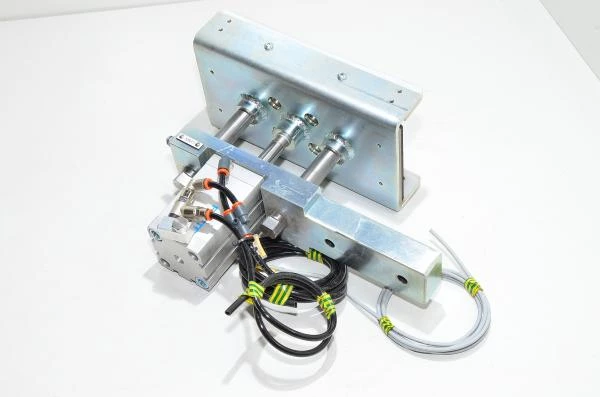

A self-made clamping module with a pneumatic cylinder for generating clamping force. It can be installed and secured in both vertical and horizontal positions. The clamp can be used to secure or hold a workpiece in place during machining, as well as to keep parts tightly together, for example, in welding or gluing. The pneumatic cylinder provides the necessary clamping force without manual effort, improving efficiency and repeatability

Clamp module technical details:

  • Inner dimensions of the pressing tray:
    • 120x250x47mm

Compact cylinder technical details:

  • Stroke:
    • 60mm
  • Piston diameter:
    • 50mm
  • Piston rod thread:
    • M10
  • Cushioning:
    • Elastic cushioning rings/plates at both ends
  • Mounting position:
    • Optional
  • Conforms to standard:
    • ISO 21287
  • Piston-rod end:
    • Female thread
  • Position detection:
    • Via proximity switch
  • Variants:
    • Piston rod at one end
  • Operating pressure:
    • 0,06...1MPa / 0,6...10bar
  • Mode of operation:
    • Double-acting
    • Pilot operated check valve
  • Operating medium:
    • Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC:
    • 2 - Moderate corrosion stress
  • Impact energy in end positions:
    • 1J
  • Theoretical force at 0,6 MPa (6bar, 87psi), return stroke:
    • 1057N
  • Theoretical force at 0,6 MPa (6bar, 87psi), advance stroke:
    • 1178N
  • Moving mass:
    • 218g
  • Type of mounting:
    • With through-hole via female thread.
  • Pneumatic connection:
    • G1/8
  • Note on materials:
    • RoHS-compliant
  • Collar screws material:
    • Steel
  • Cover material:
    • Anodised wrought aluminium alloy
  • Seals material:
    • TPE-U (PUR)
  • Piston rod material:
    • High-alloy steel
  • Cylinder barrel material:
    • Smooth-anodised wrought aluminium alloy

Download Festo ADN-50-60-I-P-A compact cylinder technical datasheet

Write a review

Please login or register to review

Tags: Clamp module, Festo, ADN-50-60-I-P-A, ADN-series, compact cylinder, actuator, G1/8,
