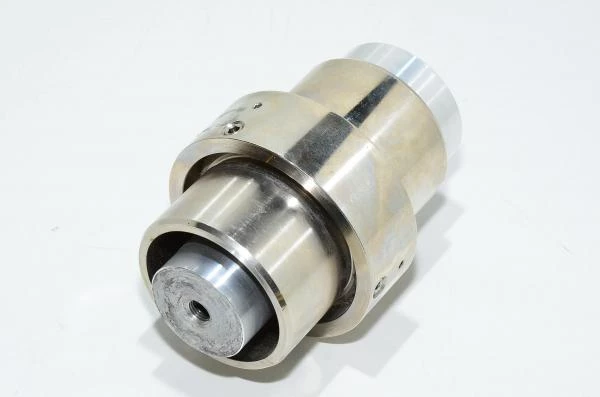

Rinco Ultrasonics 1:2 TI silver titanium 20kHz booster amplifier with shoulder for ultrasonic welding devices

Booster functions as an mechanical vibrations amplifier. The function is based on precise tooling of the component to achieve desired mechanical resonance in desired operating frequency. Booster can decrease or increase mechanical vibration. Between those two types is a plan coupling element which does not modify the amplitude in any way. Coupling element features no gain at all.

Download Branson TL-2 ultrasonic boosters and amplitudes reference guide

Download Dukane guide to plastic assembly with ultrasonic welding

Booster element technical information:

• Operating frequency:
  • 20kHz
• Model:
  • 1:2 TI 20kHz silver with shoulder
• Gain (amplification):
  • x2 (increase amplitude)
• Compatibility:
  • All Rinco ultrasonic transducers (converters) which operate at 35kHz.
• Ultrasonic transducer connection:
  • M16x2 attachment
• Ultrasonic horn (sonotrode) connection:
  • M10x1.25 attachment (most likely, we have no suitable screw in hand for testing purposes)
