Afag WT series postitioning sleeve model 3

  • Afag WT series postitioning sleeve model 3
    Afag WT series postitioning sleeve model 3 Afag WT series postitioning sleeve model 3
  • Manufacturer:
    Afag
    Afag
  • Model:
    Afag WT series postitioning sleeve model 3
  • Dimension:
    18 x 18 x 26 mm
  • Weight:
    27 g
  • Availability: 7pcs
  • Condition: Used

  • Price Including VAT: 6,28€

  • Ex Tax: 5€
pcs


Make an offer

0 reviews / Write a review

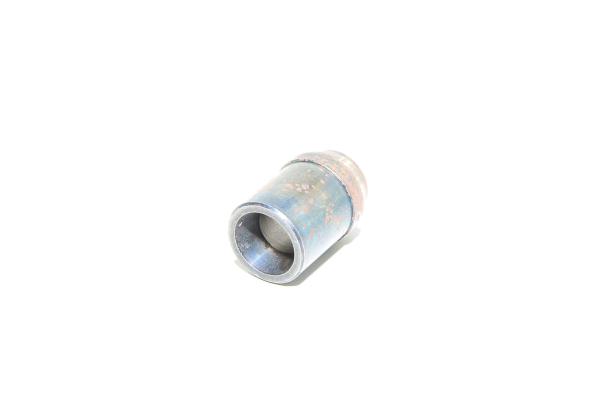

Positioning sleeve for Afag WT series workpiece carrier. This can be used with other transfer pallets if dimensions suit your applications.

Positioning bushing technical info:

  • Size:
    • 17.9x17.9x25.95mm
  • Diameter of a part that grips side module (thickest part):
    • 17.9mm
  • Hole diameter from top / bottom:
    • 10mm / 12.8mm
  • Outer dimension for part that is thinned and goes into bottom of a plate:
    • 14mm
  • Thinned part height:
    • 4.7mm
  • Material:
    • Steel

Download PDF files:

Afag LTS transfer system user manual

Afag WT series workpiece carrier technical information
