Afag WT-250-250-ST-1UF workpiece carrier pallet with roller bearing pair 250x250mm / 17kg + assembly 3

The workpiece carrier WT transports the workpieces on the linear transfer system. It consists of four frame modules, a carrier plate, and four positioning sleeves. The frame modules are made of antistatic polyamide PA6, which has a high abrasion resistance. Each frame module has engaging plates made of steel integrated in the running surfaces and the frame side. Frame modules can be equipped with two roller bearings for deflection turns. Roller bearings (UF) can be mounted on the left, right, or both sides. If desired more roller bearings can be easily increased or dereased. The carrier plates is made of steel (ST). The frame modules and plates are located by four positioning sleeves made of hardened steel, which allow for accurate positioning of the pallet in machining stations.

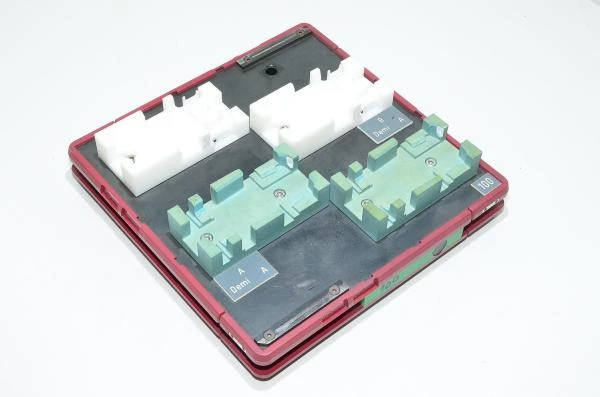

Delivery includes workpiece transfer plate assembly as pictured which is made of:

• 4 frame modules with roller bearing pair on one side
• 1 steel plate (some holes / machining may appear from earlier assemblies)
• 4 positioning sleeves
• Assembly that is seen in picture and is attached into the tray. (Tray can be stripped off from jig for the same price upon customer request, in other words if you want you get just the work piece carrier tray.

Max work piece weight is:

• 17kg

Download PDF files:

Afag LTS transfer system user manual

Afag WT series workpiece carrier technical information
