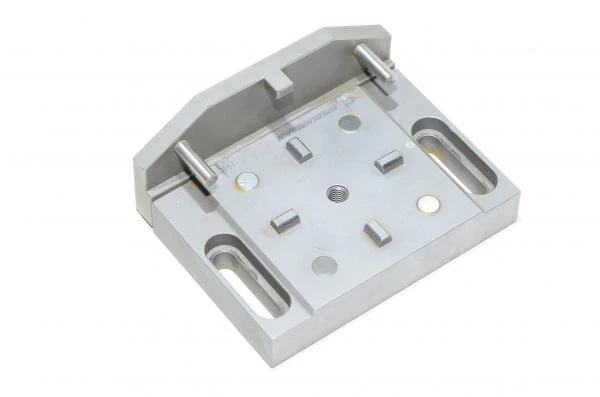

Hirschmann H4000 manual clamper unit

Hirschmann fixturing system 4000 for wire EDM machines. This is a part of Hirschmann palletizing system 4000 (pallet or holder system). Application of the pallet or holder system is possible as "stand-alone system" or in combination with the beam or frame system. Pictures with other hardware are for illustration purposes only

Clamper characteristics:

• For manual mounting of accessories into machine table.
• Repetitive accuracy:
  • 0,002mm
• Max workpiece weight:
  • 30kg
• Clamping in height:
  • Z=0
• For all applications on wire EDM:
  • Agie-Charmilles
  • Fanuc
  • Makino
  • Mitsubishi SODICK USW
