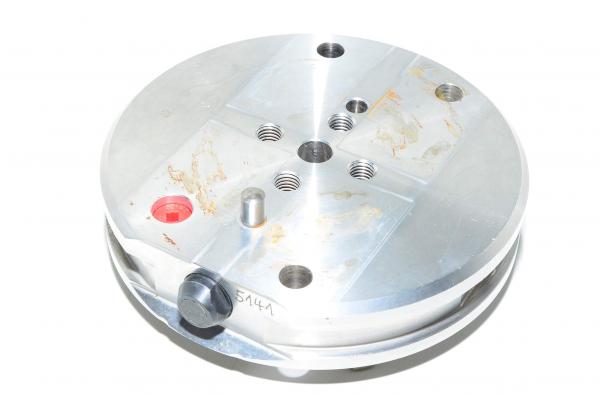

Erowa ITS toolin system's 148mm workpiece pallet with premade mounting holes

This is a ITS tooling systems work piece carrier pallet which is manufactured by Erowa. It can be used in 148mm compatible systems. This can be used for installing self centering vice, which can hold workpiece. This way you can detach the whole pallet and pass it along the system for further processing and meanwhile insert a new pallet with workpiece for tooling inside the machine. Thanks to bottom guide rails and the mounting chuck it will always be right there where it should be time after time and thisway the exchange of a workpiece will be easy and fast and the best part is that the machine works at the maximum rate during the day. Pallet is also suitable for robotic use.

Pallet technical information:

• Material:
  • Steel
• Outer diameter:
  • 148mm
• Thickness (without the chuck):
  • 40mm
• Information chip:
  • Balluff B15 C 122-03/L 01
• Holes:
  • 4x M10 with 37mm spacing
  • 1x M10 center hole (ITS chuck is missing)
  • 3x 10.5mm through holes
  • 1x M10 reference screw hole
  • 2x 8mm centering pin holes. (depending on the unit the centering pin/pins might be still remaining and in place)
• Feet:
  • At the bottom 8x pieces
• Centering plate:
  • Yes, Looks like a ground model, which should be more accurate than stamped one.
