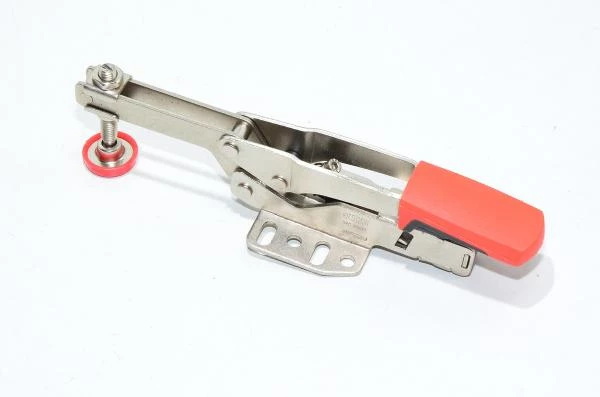

Bessey STC-HH50 horizontal toggle clamp *new*

STC-HH50 is a self-adjusting horizontal toggle clamp, designed for quick, safe, and ergonomic clamping of workpieces in jigs, assembly stations, or workbenches. Its innovative self-adjusting mechanism allows for securing workpieces of varying sizes without the need for manual adjustment.

Quick clamp use examples

• For gluing jig
• For welding jig and welding table
• For holding workpiece when machining it (soft materials / light machining)
• For laser engraving and laser cutting
• For clamping casting moulds
• For holding still a drill guide when making doors

Toggle clamp technical details:

• Model:
  • STC-HH50
• Clamping type:
  • Horizontal
• Self-adjusting clamping motion:
  • Secures workpieces of various sizes without the need to change adjustment screws.
• Clamping force:
  • Up to 2500N (adjustable)
• Clamping height range:
  • 0...35mm
• Opening width:
  • 40mm
• Base plate:
  • Suitable for screw mounting.
• Material:
  • Body:
    • Hardened steel
  • Handle:
    • Plastic-coated
  • Surface:
    • Zinc-plated (corrosion-resistant finish)
• Handle orientation:
  • Horizontal

Download Bessey STC-HH20/HH50/HH70 horizontal toggle clamp technical datasheet

 The video below tells you everything you need to know about why you want a jig clamp like this. After watching it, you might even feel guilty for not having gotten these clamps from us sooner!
