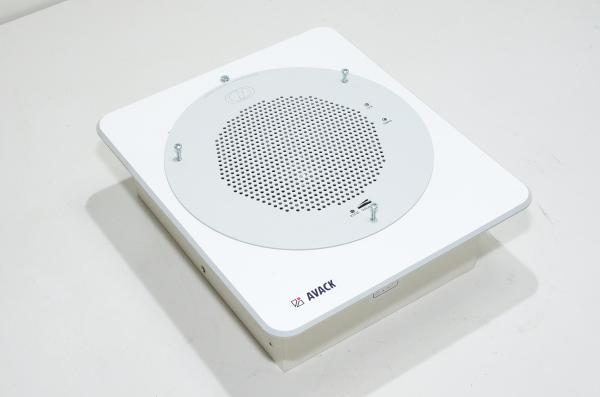

Cyberdata (010844) Voip V2 ceiling speaker, white

The CyberData SiP-enabled V2 Ceiling Speaker is a Power-over-Ethernet (PoE 802.3af) and Voice-over-IP (VoIP) public address loudspeaker that easily connects into existing local area networks with a single CAT5 cable connection. The speaker is compatible with most SiP-based IP PBX. In a non-SiP environment, the speaker is capable of playing audio from a multicast source. Its small footprint and low height allows the speaker to be discreetly mounted almost anywhere.

Speaker technical data:

• Features:
  • SIP (RFC 3261) compatible
  • Simultaneous SIP and multicast
  • Web-based configuration
  • Paging prioritization
  • Web-based firmware upgradeable
  • Plenum-rated enclosure
  • Autoprovisioning
  • High efficiency speaker driver
  • PoE 802.3af Enabled (Powered-over-Ethernet)
  • DTMF-controlled relay
  • Line-out connection
  • Network and manual speaker volume control
  • Can drive one external analog speaker for greater coverage
  • User-uploadable ring and alert tones
• Specifications:
  • Sensitivity:
    • 96dB / 1W / 1M S.P. Level
  • Output:
    • 10W peak power
  • Power input:
    • PoE 802.3af
  • Ethernet I/F:
    • 10/100Mbps
  • Regulatory compliance:
    • FCC Class A
    • UL 60950
  • Protocol:
    • SIP RFC 3261 compatible
  • Payload types:
    • G711
    • A-law
    • μ-law
  • Part number:
    • 011098 (Standard color, RAL 9002, gray white)
  • Operating temperature:
    • -30...+55°C (-22...131F)

Download Cyberdata (010844) Voip V2 ceiling speaker technical datasheet
