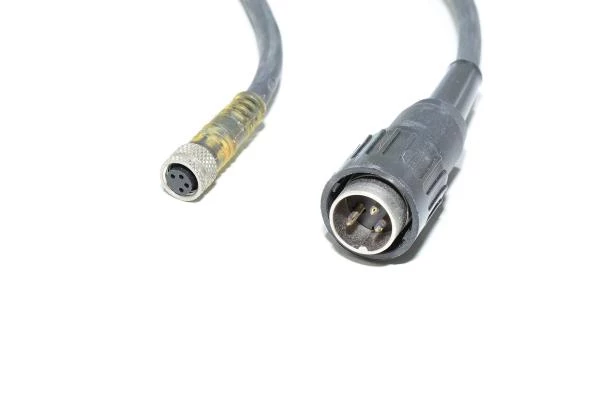

Sensor cable Baumer ES 32AP5 with molded plastic straight unshielded 4-pin female M8 sensor connector + Amphenol-Tuchel C 091 B-series T 3324 551 4-pin plastic/metal male DIN connector (pin3 is empty)

Sensor cable which can be used with wide variety of sensors and other information carrying devices. Sensor cables are an essential part of industrial automation in general. With out them... Well nothing would work.

Sensor cable technical details:

• Connector side A:
  • Molded plastic straight unshielded 4-pin female M8 sensor connector
    • Connector material:
      • Plastic
    • Nut material:
      • Nickel plated brass
    • Tightening torque:
      • 0.5Nm
• Connector side B:
  • DIN connector 4-pin Amphenol-Tuchel C 091 B-series T 3324 551 male, plastic/metal, straight, bayonet locking, crimp connection, for max 7mm cables (pin 3 is empty)
  • Additional information about this connector can be gathered by checking our online store for this particular model or by downloading the technical datasheet from the bottom of the page.
  • Wiring:
    • Most likely straight (from pin to pin between connectors), but might vary between units
• Max operating voltage:
  • No info
• Operating temperature:
  • No info
• IP-rating:
  • IP67 (DIN connector IP40)
• Cable material:
  • Polyurethane (PUR)
• Cable wires:
  • 4x 0.25mm²
• Cable outer diameter:
  • 5mm
• Cable color:
  • Black
• Cable model markings:
  • ESG 32AP5
  • ESG 32AP0500G

Download Baumer sensor cables technical datasheet

Download Amphenol-Tuchel electronics industrial C 091 A/B/C series circular connectors technical datasheet

This is used sensor cable so make sure you select the cable length from the available lengths.

Connector pinout and wire colors are from manufacturers datasheet or from couple of our test measured units. It's up to user to either trust these or measure them prior to connection. Just as a precaution we recommend testing out the wiring just to be sure and not destroy anything.
