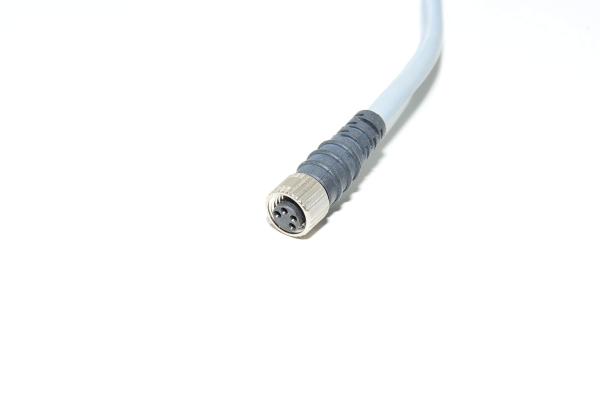

Sensor cable Murrelektronik 3833543 with molded plastic straight unshielded 4-pin female M8 sensor connector

Sensor cable which can be used with wide variety of sensors and other information carrying devices. Sensor cables are an essential part of industrial automation in general. With out them... Well nothing would work.

Sensor cable technical details:

• Connector side A:
  • Molded plastic straight unshielded 4-pin female M8 sensor connector
    • Connector material:
      • Plastic
    • Nut material:
      • Nickel plated brass
    • Wiring of pins:
      • 1 = Brown (+)
      • 2 = White (NC/S2)
      • 3 = Blue (-)
      • 4 = Black (NO/S1)
• Connector side B:
  • Nothing
• Max operating voltage:
  • No info
• Operating temperature:
  • No info
• IP-rating:
  • IP67
• Cable material:
  • Polyurethane (PUR)
• Cable wires:
  • 4x 0.25mm²
• Cable outer diameter:
  • 4.5mm
• Cable color:
  • Gray
• Cable model markings:
  • Art. Nr. 3833543
  • MSFL0-TJC3.0 17314

Download Murrelektronik M8 sensor connectors and sensor cables technical datasheet

This is used sensor cable so make sure you select the cable length from the available lengths.

Connector pinout and wire colors are from manufacturers datasheet or from couple of our test measured units. It's up to user to either trust these or measure them prior to connection. Just as a precaution we recommend testing out the wiring just to be sure and not destroy anything.
