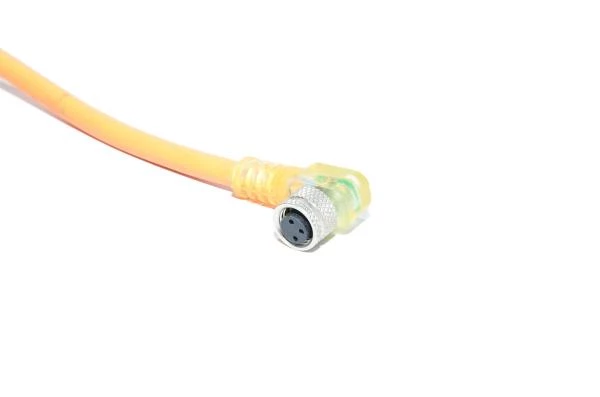

Sensor cable IFM E10292 with molded plastic angle type unshielded 3-pin female M8 PNP LED sensor connector

Sensor cable which can be used with wide variety of sensors and other information carrying devices. Sensor cables are an essential part of industrial automation in general. With out them... Well nothing would work.

Sensor cable technical details:

• Connector side A:
  • Molded plastic 90° angle type unshielded 3-pin female M8 PNP LED sensor connector
    • Connector material:
      • Thermoplastic polyurethane (TPU), transparent
    • Nut material:
      • Nickel plated brass
    • Wiring of pins:
      • 1 = Brown (L+)
      • 3 = Blue (out)
      • 4 = Black (L-)
      • Yellow LED and series resistor between pin4 -> pin3
      • Green LED and series resistor between pin1 -> pin3
• Connector side B:
  • Nothing
• Max operating voltage:
  • 10...30VDC
• LED operation method:
  • DC PNP
    • Yellow LED = Sensor output has been activated
    • Green LED = Indicates power presence
• Operating temperature:
  • -25...90°C
• IP-rating:
  • IP67
• Cable material:
  • Polyurethane (PUR) / Polyvinyl chloride(PVC)
• Cable wires:
  • 3x 0.34mm² (42x 0.1mm strands)
• Cable outer diameter:
  • 5mm
• Cable color:
  • Orange
• Cable model markings:
  • E10292
  • Ecomat 400 series

Download IFM E10292 3pin M8 PNP LED angled female sensor cable technical datasheet

This is used sensor cable so make sure you select the cable length from the available lengths.

Connector pinout and wire colors are from manufacturers datasheet or from couple of our test measured units. It's up to user to either trust these or measure them prior to connection. Just as a precaution we recommend testing out the wiring just to be sure and not destroy anything.
