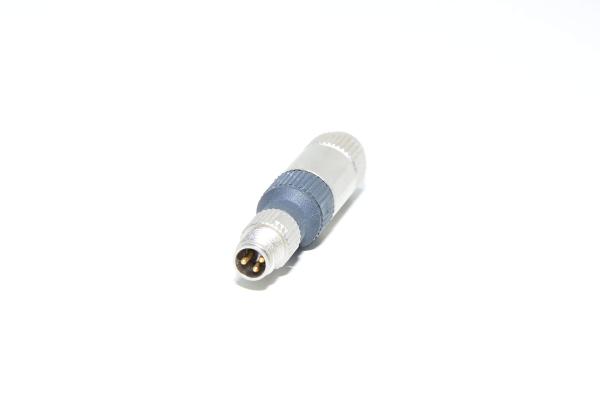

M8 straight unshielded 3-pin sensor connector, male, plastic/metal, Harting Harax M8-S 21 01 130 4061, blade connection for 4-5.1mm cables

Dust and water proof 3 pin M8 connector which is commonly used with sensor technology, which does not require any special tools for assembling. For installation you only need wire cutter. Connector is mounted into sensor with thread.

• Robust
• Well protected
• Easy to assemble
• Commonly used in automation

Connector technical details:

• Number of contact pins:
  • 3x
• Wire connection:
  • Blade terminals
• Thickness of used cable:
  • 4...5.1mm
• Max conductor size:
  • 0.25...0.5mm² (AWG 24...22)
• IP rating:
  • IP67
• Connector coding (system of pins keyholes which restrict similar looking connectors to mate with other same looking differently coded connectors):
  • No coding
• Construction:
  • Polyamide (PA) plastic / metal
• Connection locking system:
  • Screw
• Operating temperature:
  • -25...85°C
• Connection temperature:
  • -5...50°C
• Max rated voltage:
  • 32V
• Max rated current:
  • 4A
• Thread:
  • M18x1
• Shielding:
  • No shielding

Download Harting industrial connectors technical datasheet (this connector model is found in here)

Download Harting M8/M12 circular sensor connectors technical datasheet
