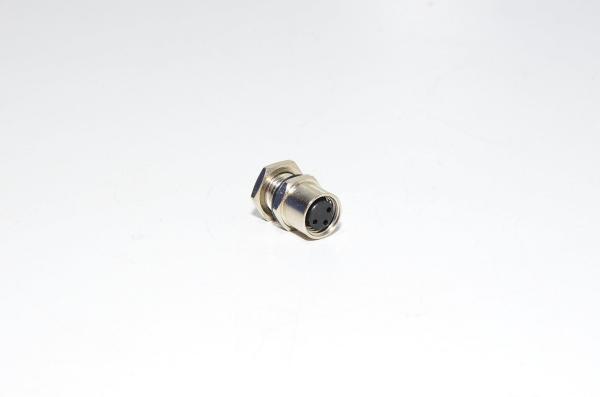

M8 panel mount 3-pin female front mounting metal sensor connector SS-M8-PM-3P-F-FRMT-M8x1-SC-V1 with M8x1 thread and solder cups *new*

Dust and water proof 3 pin M8 connector which is commonly used with sensor technology. Connection is made by twisting the counterpart into connector.

• Robust
• Well protected
• Easy to assemble
• Commonly used in automation

Connector technical details:

• Number of contact pins:
  • 3x
• Connector gender:
  • Female
• Contact pins connection method:
  • Solder cups for lead connection
• Max compatible lead size:
  • 0.5mm²
• Soldering pins spacing:
  • 3,5mm with 0° rotation or 2,5mm with 45° rotation
• Mounting direction:
  • Front mount (means the connector is inserted from outside into the equipment chassis and locknut comes from inside).
    • Looks nicer from outside, but requires more space at the inside.
    • You cant pre-assemble your equipment and solder all the wires to to the connector prior to mounting the connector into the chassis.
    • In case you need to tighten the connector afterwards, it must be done from the inside of the chassis.
• IP rating:
  • IP67
• Construction:
  • Connector shell: Nickel plated H59 brass
  • Lock nut: Nickel plated H59 brass
  • Contact pins: 0,1µm gold plated QSn4-3 tin bronze
  • Inner part: 30% glass fiber reinforced PBT
  • O-ring: NBR
• Connection locking system:
  • Screw
• Operating temperature:
  • -40...85°C
• Max rated voltage:
  • 125V
• Max rated current:
  • 3A
• Thread:
  • Connector thread:
    • M8x1
  • Connector shell thread:
    • M8x1
• Suitable spanner size:
  • Shell:
    • 10mm
  • Nut:
    • 11mm
