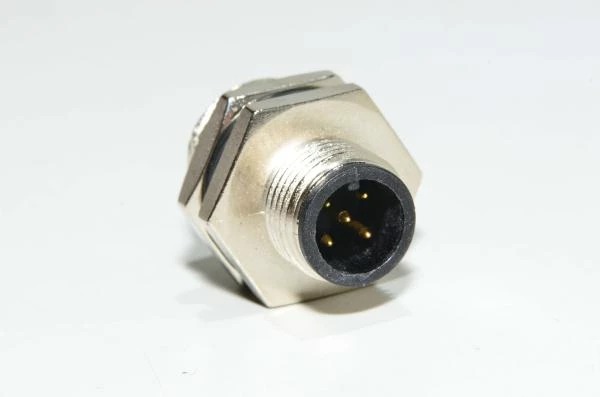

M12 panel mount A-coded 5-pin male front mounting metal sensor connector TE Connectivity 1838893-3 with M16 thread and solder cups for wire connection *new*

Dust and water proof 5 pin M12 connector which is commonly used with sensor technology. Connection is made by twisting the counterpart into connector.

• Robust
• Well protected
• Easy to assemble
• Commonly used in automation

Connector technical details:

• Number of contact pins:
  • 5x
• Contact pins connection method:
  • Solder cups for leads
• Mounting direction:
  • Front mount (means the connector is inserted from outside into the equipment chassis and locknut comes from inside).
    • Looks nicer from outside, but requires more space at the inside.
    • You cant pre-assemble your equipment and solder all the wires prior of actually mounting the connector into the chassis.
    • In case you need to tighten the connector afterwards, it must be done from the inside of the chassis.
• Max conductor size:
  • 22AWG (0,326mm²)
• IP rating:
  • IP67
• Connector coding (system of pins keyholes which restrict similar looking connectors to mate with other same looking differently coded connectors):
  • A-coded (common type with sensors)
• Construction:
  • Connector shell and lock nut: Nickel plated die-cast zinc
  • Contact pins: Gilded nickel plated brass
  • Inner part: Glass fiber reinforced nylon
  • O-ring: EPDM
• Connection locking system:
  • Screw
• Operating temperature:
  • -25...90°C
• Max rated voltage:
  • 500V
• Max rated current:
  • 5A
• Thread:
  • Connector thread: M12x1
  • Connector shell thread:  M16x1.5
• Suitable spanner size:
  • 18mm

Download TE Connectivity 1838893-series panel mountable metal A-coded male M12 sensor connectors technical datasheet
