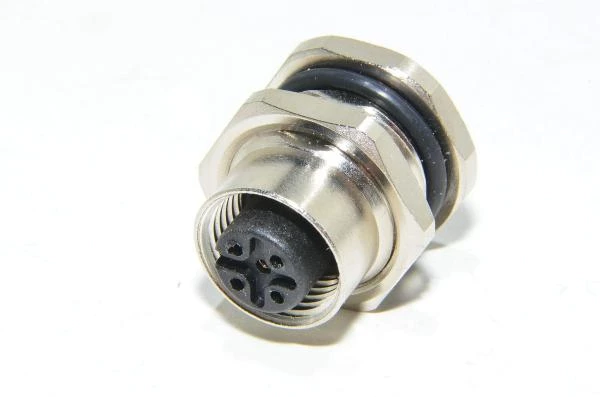

M12 panel mount A-coded 5-pin female rear mounting metal sensor connector SS-M12-PM-AC-5P-F-REMT-PG9-PCB-V1 with PG9 thread and solder pins for PCB connection *new*

Dust and water proof 5 pin M12 connector which is commonly used with sensor technology. Connection is made by twisting the counterpart into connector.

• Robust
• Well protected
• Easy to assemble
• Commonly used in automation

Connector technical details:

• Number of contact pins:
  • 5x
• Connector gender:
  • Female
• Contact pins connection method:
  • Solder pins for PCB
• Soldering pins diameter:
  • 0.8mm
• Soldering pins spacing:
  • 5mm with 0° rotation or 3,6mm with 45° rotation
• Mounting direction:
  • Rear mount (means the connector is inserted from inside of the equipment chassis and locknut comes from outside).
    • Looks less nicer from outside, but requires less space at the inside.
    • You can pre-assemble your equipment and solder all the connectors to PCB prior to mounting the connector into the chassis.
    • In case you need to tighten the connector afterwards, it must be done from outside of the chassis.
• IP rating:
  • IP67
• Connector coding (system of pins keyholes which restrict similar looking connectors to mate with other same looking differently coded connectors):
  • A-coded (common type with sensors)
• Construction:
  • Connector shell: Nickel plated H59 brass
  • Lock nut: Nickel plated H59 brass
  • Contact pins: 0,1µm gold plated QSn4-3 tin bronze
  • Inner part: 30% glass fiber reinforced PBT
  • O-ring: NBR
  • Connection surface gasket: NBR
• Connection locking system:
  • Screw
• Operating temperature:
  • -40...85°C
• Max rated voltage:
  • 125V
• Max rated current:
  • 4A
• Thread:
  • Connector thread:
    • M12x1
  • Connector shell thread:
    • PG9
• Suitable spanner size:
  • Shell:
    • 18mm
  • Nut:
    • 18mm
• Confirms to the following standard:
  • IEC 61076-2-101
