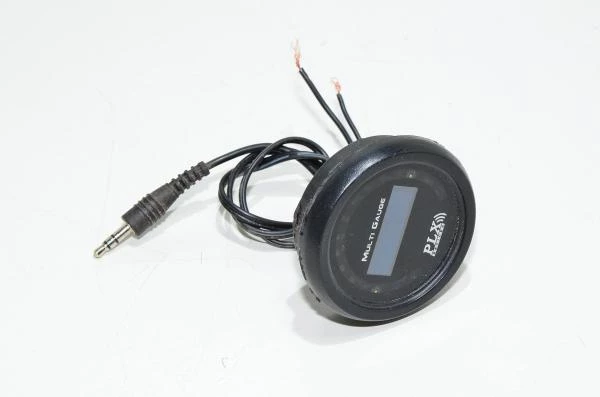

PLX Devices DM-6 black multi gauge module with OLED display and touch buttons

The DM-6 multi gauge display module is an OLED automotive gauge designed to display the measured values from your PLX sensor modules. Measuring only 18 mm thin, it can be mounted virtually anywhere. The DM-6 multi gauge is designed to fit into most aftermarket 52mm cups, and can be mounted for seamless integration into your vehicle. Utilizing new touch screen sense technology, buttons are a thing of the past. Navigate your gauge and menus with ease by touching the bezel of the gauge. An ideal accessory for your PLX sensor modules.

Multi gauge technical details:

• Features:
  • Plug and play
  • Imperial units and metric units
  • Automatic sensor detection
  • 180° viewing angle
  • Excellent daytime visibility
  • 3 position touch interface
• Installation hole:
  • 52x18mm (2" 1/16"x0.7")
• Display technology:
  • 1.10" OLED dot matrix screen 124x36 pixels
• LED:
  • 16 LED
    • 5x green
    • 6x yellow
    • 5x red
• Viewing angle:
  • 180°
• Polarization:
  •  None (refers either to screen's optical specs or power connection)
• Supply voltage:
  • 3.3V and 8V from sensor module
• Power consumption:
  • <1W
• Cable lengths:
  • ~400mm power cable
  • ~80mm serial data cable with 3,5mm stereoplug
• Operating temperature:
  • 0...+85°C
• User interface:
  • 3 Button capacitive touch
• Number of sensors:
  • 16 Maximum daisy chain
