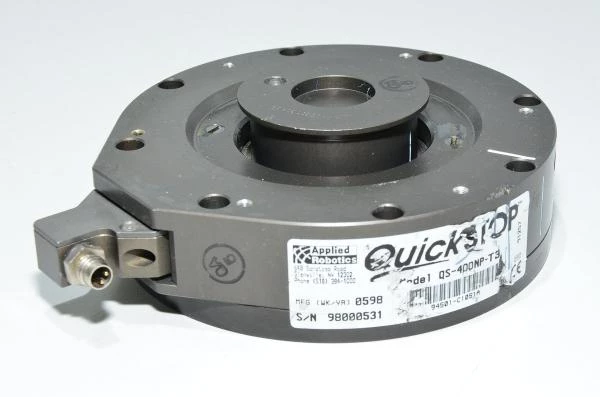

Applied Robotics QuickStop QS-400NP-T3 collision sensor (with one broken non-connected M8 connector pin)

The QS-400 is a dynamically variable collision sensor that operates on an air pressure system and an excellent choice for protection in material handling applications. A regulated air supply provides positive, variable pressure to hold the collision sensor rigid during normal operation. At impact, the air chamber seal is opened and the pressure switch will send a message to the control system immediately.

This individual has one broken pin in it’s M8 connector. This does not have any effect on the device operation, since the broken off pin has never been connected into the pressure switch.

Key Benefits

• Dynamically variable trip points
• Permanent repeatability
• Use on linear actuators, robots, pick-and-place machines
• Detects angular, rotational and compressive forces

Performance:

• Torque trip point in Z-axis (continuously variable):
  • 11.8-84Nm
  • 104-749"lb
• Moment trip point in X- and Y-axis (continuously variable):
  • 11.3-63.9Nm
  • 100-566"lb
• Mass:
  • 1.3kg
  • 2.9lb
• Compliance angle:
  • ±5°
• Axial compliance (Z+):
  • 6.6mm
  • 0.265"
• Rotary compliance:
  • No limit
• Center of mass:
  • 32.6mm
  • 1.29"
• Operating temperature:
  • 0...100°C
• Repeatability:
  • X&Y:
    • ±0.025mm
    • ±0.001"
  • Z:
    • ±0.013mm
    • ±0.0005"
  • Rotational:
    • ±0.024°
• Average response Time:
  • <15ms
• Switch:
  • High reliability snap action type UL/SCA approved aircraft type pressure switch
• Average cycle life:
  • 7 million cycles
• Voltage and current rating:
  • 42.4VDC max
  • 3A max
• Compressed air connection
  • 2x M5 ports, which of another one is blocked
