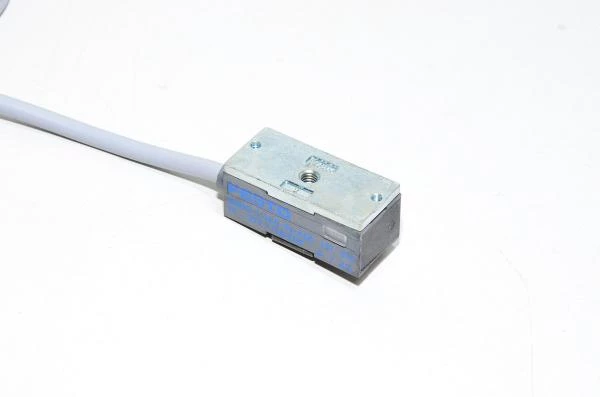

Festo SMEO-1-LED-24-K5-B 151672 magnetic proximity sensor *new*

SMEO-1-LED-24-K5-B is a proximity sensor commonly used for detecting the position of components, particularly in automation and pneumatic applications. This sensor is suited for industrial environments, often used in automated machinery to ensure precise position monitoring. It detects the movement of the cylinder piston when the piston is equipped with an internal magnet.

Proximity sensor technical details:

• Sensor type:
  • Magnetic proximity sensor
• Part number:
  • 151672
• Switching output:
  • Contact-based, bipolar
• Switching element function:
  • NO contact
• Reproducibility of switching value:
  • +/- 0,1mm
• On time:
  • ≤0,5ms
• Max. output current:
  • 1000mA
• Min. switching capacity AC:
  • 27VA
• Max. switching capacity DC:
  • 27W
• Short-circuit protection:
  • No
• Overload protection:
  • Not available
• Operating voltage range AC:
  • 12V...27V
• Operating voltage range DC:
  • 12V...27V
• Switching status indication:
  • Yellow LED
• Reverse polarity protection:
  • No
• Electrical connection:
  • 3x pin 4,9m cable
• Connection outlet orientation:
  • Longitudinal
• Mounting position:
  • Any
• Type of mounting:
  • With accessories
• Protection class:
  • IP67
• Operating temperature:
  • -20...+70°C
• Housing material:
  • Die-cast zinc
• Material of cable sheath:
  • TPE-U(PUR)

Download Festo SMEO-1-LED-24-K5-B 151672 magnetic proximity sensor technical datasheet
