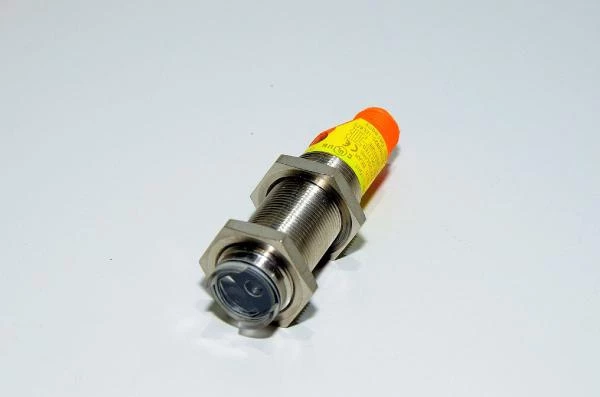

IFM OG5056 Diffuse-reflective sensor

  • IFM OG5056 Diffuse-reflective sensor
    IFM OG5056 Diffuse-reflective sensor IFM OG5056 Diffuse-reflective sensor
  • Manufacturer:
    Ifm-electronic
    Ifm-electronic
  • Model:
    IFM OG5056
  • Dimension:
    73 x 29 x 29 mm
  • Weight:
    75 g
  • Availability: 4pcs
  • Condition: Used
  • Price Including VAT: 50,20€

  • Ex Tax: 40€
pcs


Make an offer

Retro-reflective infrared sensor from IFM for industrian usage.

  • Threaded type
  • M18x1
  • Connector
  • Function check output
  • Sensing range 0.001...0.150m
  • Adjustable
  • Electrical design: DC PNP
  • Operating voltage: 10..30V
  • Current consumption: <35mA
  • Type of light: Visible laser light, class 2 laser
  • Protection class: II
  • Reverse polarity protection: yes
Sensors
Adjustable Yes
Ambient temperature -10...50°C
Attachement Threading
Connection M12 Connector, gold plated
Coupling Connector
Current Consumption max. 30mA
Current rating - Function check output 10mA
Current rating - Switching output 200mA
Electrical design DC PNP
EMC EN 60947-5-2 EN 55011
Function display LED Red
Funtion check output Yes
Highly focussed beam Yes
Housing materials stainless steel 316L / 1.4404; PBT
Lens material PMMA
Light spot diameter 0.1mm (range 50mm)
Measurement range 0.001...0.150m
MTTF 429
Operating voltage 10...30V
Operation LED Green
Output function light-on / dark-on programmable
Output status indication LED Yellow
Overload protection Yes
Protection IP 67
Protection class II
Range referred to prismatic reflector
Reverse polarity protection Yes
Short-circuit protection Pulsed
Switching frequency 500Hz
Thread M18
Type Diffuse reflection sensor
Type of light Red light 675nm
Voltage drop - function check output <3,5V
Voltage drop - switching output <2,5V
