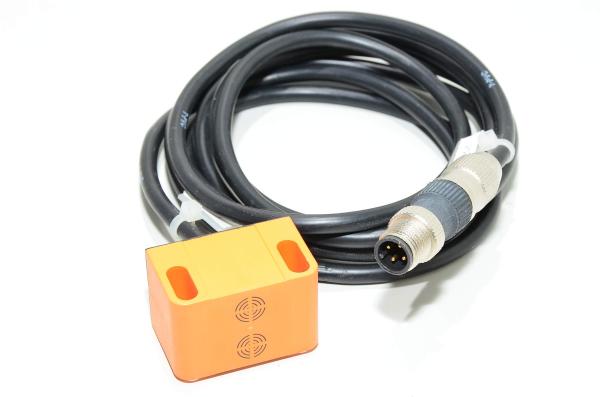

IFM IN5251 Inductive valve sensor

Manufacturer:

Ifm-electronic
Model:
IFM IN5251
Dimension:
40 x 26 x 26 mm
Weight:
133 g

Availability: 180pcs
Condition: Used

Price Including VAT: 62,75€
Ex Tax: 50€

Quantity

pcs

Make an offer

Inductive sensors are nowadays indispensable for industrial usage. As compared to mechanical switches they offer almost ideal conditions: non-contact operation free from any wear and tear, high switching frequencies and accuracy. In addition, they are insensitive to vibration, dust and moisture. Inductive sensors detect all metals without contact.

For monitoring valve positions
For reliable position feedback on valve actuators
Non-contact and self-cleaning system
Quick and secure mounting with only three screws
High shock and vibration resistance
Rectangular, plastics
Cable (Length varies. Minimum: 50cm)
Sensing range 4mm; non-flush mountable
Electrical design: DC PNP
Operating voltage: 10..36V
Current consumption: <15mA (24V)
Output function: 2 x Normally open
Protection class: II
Reverse polarity protection: yes

Attention: Connector shape may vary from the picture

Sensors
Ambient temperature	-25...80°C
Attachement	Screw mounting
Connection	PVC cable / 2 m; 4 x 0.34 mm²
Correction factors	mild steel = 1 / stainless steel approx. 0.7 / brass approx. 0.5 / Al approx. 0.4 / Cu approx. 0.3
Current Consumption	max. 15mA (24V)
Current rating	250mA
Electrical design	DC PNP
EMC	EN 60947-5-2 EN 55011: class B
Housing materials	PBT; PC (polycarbonate)
Hysteresis	1...15% of Sr
Mounting	non-flush mountable
MTTF	1089 years
Operating distance	0...2.5mm
Operating voltage	10...36V
Output function	2 x normally open
Output status indication LED	2 x Yellow
Overload protection	Yes
Protection	IP 67
Protection class	II
Real sensing range	4±10%
Reverse polarity protection	Yes
Sensing Range	4mm
Short-circuit protection	Pulsed
Switching frequency	1300Hz
Thread	N/A
Type	Inductive senson
Voltage drop	<2.5V
Weight	133g
