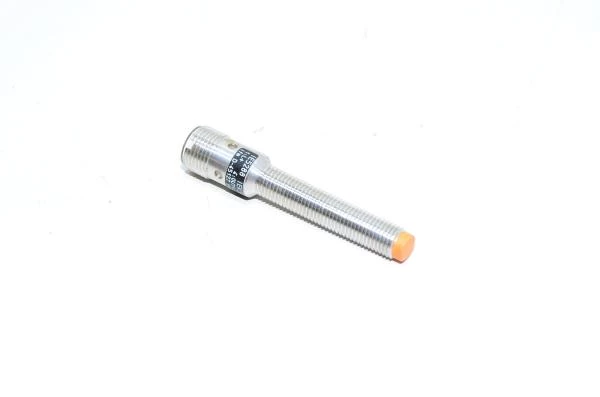

IFM IE5288 Inductive sensor, 10-36VDC, 100mA, PNP

Inductive sensors are nowadays indispensable for industrial usage. As compared to mechanical switches they offer almost ideal conditions: non-contact operation free from any wear and tear, high switching frequencies and accuracy. In addition, they are insensitive to vibration, dust and moisture. Inductive sensors detect all metals without contact.

• Threaded type
  • M8x1
• Connection method:
  • M12
    • Pin 1:
      • +10...36VDC operating voltage
    • Pin 2:
      • Not used
    • Pin 3:
      • Ground
    • Pin 4:
      • Output signal
• Sensing range:
  • 4mm (non-flush mountable)
• Electrical design:
  • PNP (sourcing)
• Operating voltage:
  • 10..36VDC
• Current consumption:
  • <15mA (24VDC)
• Max output current:
  • 100mA
• Reverse polarity protection:
  • Yes
• Output function:
  • Normally open
