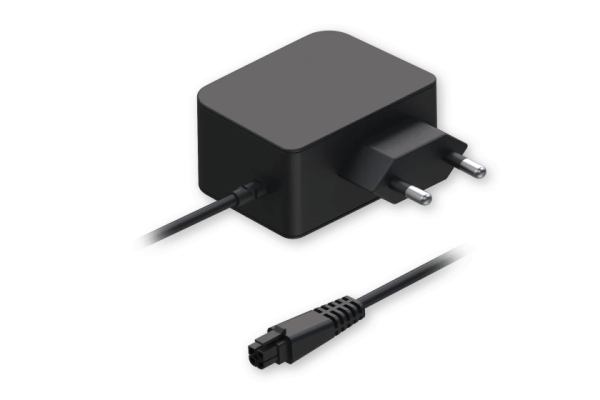

Teltonika EU power supply 18W *new*

Teltonika EU power supply, 18W

Power supply technical details:

• Technical data:
  • Input voltage:
    • 100...240VAC
  • Input frequency:
    • 50/60Hz
  • Input current:
    • 0.6A
  • Input connector:
    • EU (Type C)
  • Output voltage:
    • 12VDC
  • Output current:
    • 1.5A
  • Output connector:
    • 4-pin, 3 mm pitch
  • Input voltage range:
    • 90...264VAC
  • Input frequency range:
    • 47...63Hz
  • Maximum input inrush current:
    • 60A
  • Output voltage maximum deviation:
    • 11.4...12.6VDC
  • Short circuit protection:
    • Yes
  • HIPOT (dielectric withstand test):
    • Primary to Secondary: 4000VDC
  • MTBF:
    • 30000h
  • Certification:
    • Safety:
      • IEC 62368-1:2014
      • EN 62368-1:2014+A11:2017
    • EMC:
      • EN 55032:2015, EN 55035:2017
      • EN 61000-3-2:2019
      • EN 61000-3-3:2013+A1:2019
      • IEC 61000-4-11:2004+A1:2017)
    • Energy efficiency:
      • Level VI
• Compatible products:
  • RUT360
  • RUTX08
  • RUTX09
  • RUTX10
  • RUTX11
  • RUTX50
  • RUTXR1
  • TCR100
  • TRB140
  • TRB143
  • TRB145
  • TSW100
  • TSW110

Download Teltonika EU power supply 18W technical datasheet
