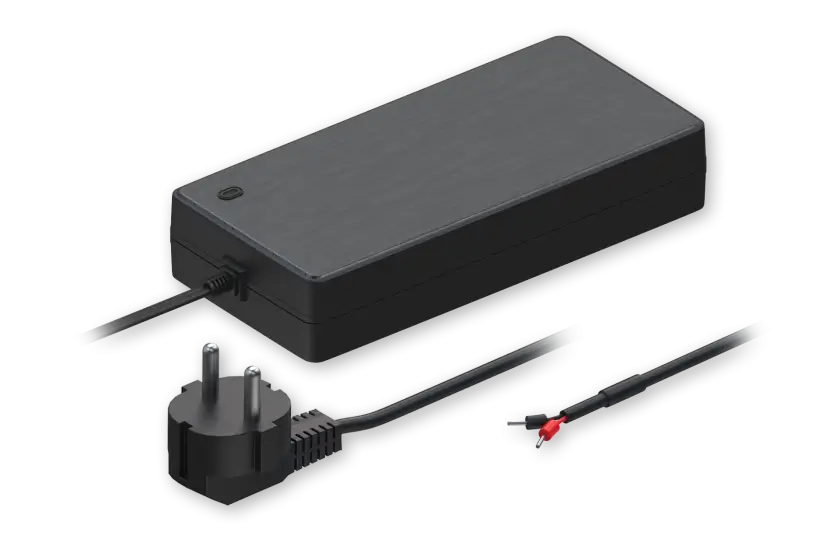

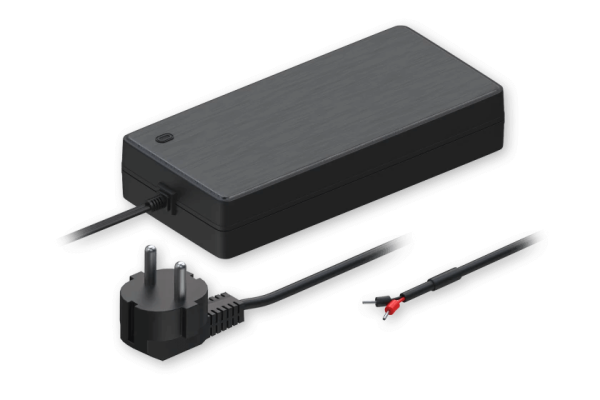

Teltonika EU 2-PIN power supply 250W *new*

EU 2-PIN power supply, 250W

Power supply technical details:

• Technical data:
  • Input voltage:
    • 100...240VAC
  • Input frequency:
    • 50/60Hz
  • Input current:
    • 3.9A
  • Input connector:
    • EU /Type F)
  • Output voltage:
    • 54VDC
  • Output current:
    • 4.62A
  • Output connector:
    • 2-pin, with cord end terminals
  • Input voltage range:
    • 90...264VAC
  • Input frequency range:
    • 47...63Hz
  • Maximum input inrush current:
    • 60A
  • Output voltage maximum deviation:
    • 51.3...56.7VDC
  • Short circuit protection:
    • Yes
  • HIPOT (dielectric withstand test):
    • Primary to Secondary: 1500VAC
  • Certification:
    • Safety:
      • IEC62368-1 (CB Scheme)
    • EMC:
      • EN 55032:2015
      • EN IEC 61000-3-2:2019
      • EN 61000-3-3:2013
      • EN 61000-4-2:2009
      • EN 61000-4-3:2006+A1:2008+A2:2010
      • EN 61000-4-4:2012
      • EN 61000-4-5:2014
      • EN 61000-4-6:2014
      • EN 61000-4-8:2010
      • EN 61000-4-11:2004
• Compatible products:
  • TSW200

Download Teltonika EU 2-PIN power supply 250W technical datasheet
