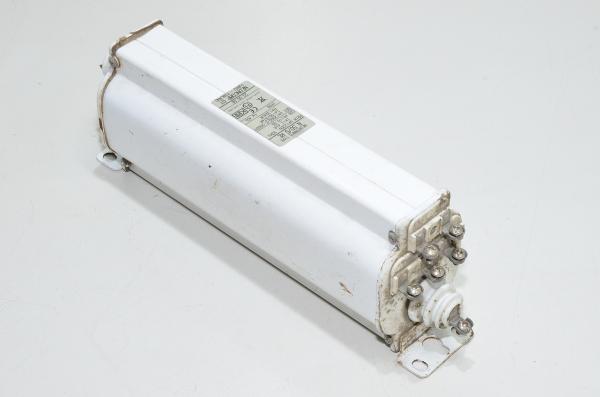

230VAC / 2500VAC 324VA Neoncomp Neontrafo type N 50/5 RE transformer

N 50/8 RE transformer is an electromechanical neon transformer designed for applications like powering neon signage. It operates with an input voltage of 230VAC and provides an output voltage of 4000V at a current of 2,26A. The transformer is protected according to EN 50107 standards and is rated for use in environments up to 40°C (TA). Additionally, it features earth leakage protection for safety. The transformer has very high voltage and is life-threatening, so you should be careful when working with the device and not make any homemade constructions.

Transformer technical details:

• Primary:
  • Voltage:
    • 230VAC
  • Current:
    • 1,41A
  • Cos φ:
    • 0,55
• Secondary:
  • Voltage:
    • 5000VAC (2500VAC-GRD-2500VAC)
  • Current:
    • 67mA
  • Apparent power rating:
    • 324VA
