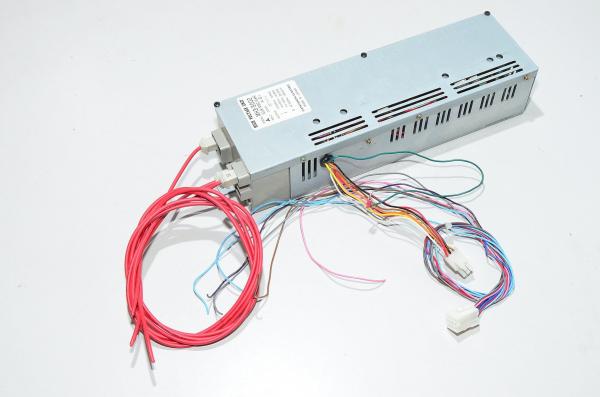

-4250V -0,5mA, -5400V -0,4mA 7200V 0,15mA 1300VACpp 1600Hz, outputs, 24VDC input Matsushita Electric MH3-5002 EUK-MBCI54H switching mode power supply

Since now we have here so weird power supply in question, that who ever needs this most certainly does  not need schooling on power supply basics, but rather a warning "do not kill yourself or anyone else with this". This power supply is the weirdest one we have seen so far. The only normal things are, that it works on 24VDC voltage, consists from components and is enclosed in metal chassis. And then to the weird stuff, which brings us to the outputs:

• Output 1 (B):
  • -4250V -0,5mA 8,5MΩ
• Output 2 (T):
  • -5400V -0,4mA 18MΩ
• Hidden, but indicated output:
  • 7200V 0,15mA 36MΩ
• Output 3 (D):
  • 1300VACpp (peak to peak) 1600Hz

We do not have yet any idea what might be the pinout with the low voltage cables. Well ammend this information if we ever happen to get it.

No more weird things left to mention.
