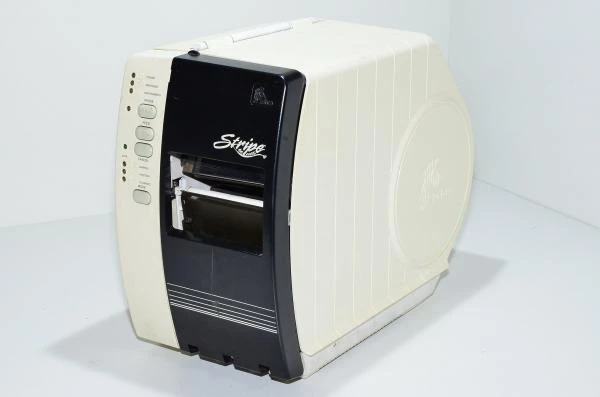

Zebra S500-222-0000 203DPI thermal transfer printer with LPT port

The Zebra Stripe S-500 print labels where and when you need them. The Zebra Stripe S-500 printer produces high quality bar codes, alphanumerics, and graphics at the point of application. You can print labels for tracking pallets
and cartons, identifying test tubes in laboratories, or producing bar coded shipping labels. It also accommodates standard 8 inch diameter label rolls.

Features:

• Direct thermal and thermal transfer printer
• 19...115.0mm (0.75...4") media width
• Programmable constant printing speeds:
  • 2"/s (51mm/s)
  • 3"/s (76mm/s)
  • 4"/s (104mm/s)
  • 5 "/s (127mm/s)
  • 6"/s (152mm/s)
• 8 dot/mm (203.2 dpi) printhead - print width 4.1"
• Standard Zebra bitmapped fonts, A,B,C,D,E,F,G,H
• Scaleable smooth font CG Triumvirate Bold Condensed
• IBM code page 850 international character set
• Standard memory 512K DRAM
• Standard tear-off mode
• Standard symbologies include PDF417, Code 39, and MaxiCode

Technical specifications:

• Environment
  • Operating Temperature:
    • +5...+40°C (+41°...+105°F)
  • Storage Temperature:
    • -20...+60°C (-40°...+140°F)
  • Humidity:
    • 5...85% Non-condensing
• Interfaces
  • Parallel port (LPT, printer port, Centronics)
• Physical Characteristics
  • Length:
    • 431.8mm (17")
  • Height:
    • 330mm (13")
  • Width:
    • 209.6mm (8.25")
  • Weight:
    • 8kg (17.6lbs)
• Power
  • Input:
    • 100...120VAC / 220...240VAC
    • 50/60Hz
  • Power consumption:
    • 5A / 3A
• Print Specifications
  • Max Width:
    • Up to 104mm (4.1")
  • Max Length:
    • 0.235...381mm (0.00429"...15") with standard memory
    • 0.235...991mm (0.00429"...39") with additional 512KB memory expansion
  • Max Label Width:
    • 19...115.0mm (0.75...4")
  • Thickness:
    • 0.076...0.304mm (0.003...0.012")
  • Style:
    • Roll-fed or fanfold
  • Label Roll Max Diameter:
    • 203mm (8")
  • Label Roll Core:
    • Min 76mm (3")
  • Resolution:
    • 8dots/mm (203dpi)
  • Print Speed:
    • 50.8...152.4mm/s (2...6"/s) variable
• Media Type:
  • Prints direct thermal and thermal transfer labels, tickets and tags.
• Print modes:
  • Peel-off
  • Cutter mode (requires cutter, which this unit does not have)
  • Tear-off
  • Rewind mode (Labels are externally rewound. Requires optional exernal reqinder)
• Control panel:
  • LED's
    • Power
    • Printhead/paper
    • Ribbonerror
    • Pause
    • Data
    • Darken
    • Position
    • Calibrate
  • Pause, Feed, Cancel and Mode buttons
• Supported Bar Code Symbologies
  • 1-Dimensional:
    • Code 11
    • Code 39 (Supports ratios of 2:1 to 3:1)
    • Code 49 (2-Dimensional Bar Code)
    • Code 93
    • Code 128 - Supports serialization in all subsets and UCC Case Codes
    • Codabar (Supports Ratios of 2:1 to 3:1)
    • Interleaved 2 of 5 (supports Ratios of 2:1 to 3:1 Modulus 10 Check Digit)
    • Industrial 2 of 5, Standard 2 of 5
    • LOGMARS
    • Plessey
    • EAN-8, EAN-13, EAN EXTENSIONS
    • UPC-A, UPC-E, UPC EXTENSIONS
    • MSI
    • POSTNET
  • 2-Dimensional:
    • Maxicode
    • PDF417
