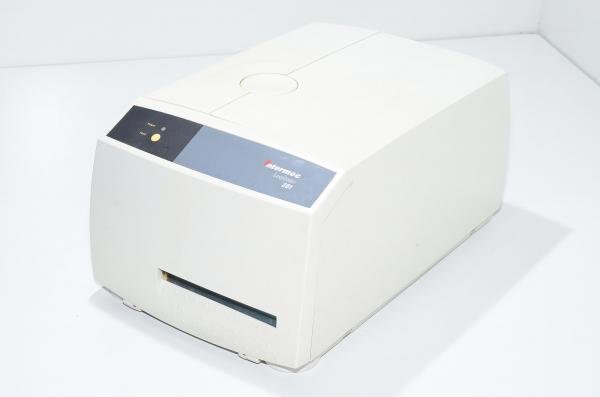

Intermec EasyCoder 301 203DPI thermal transfer printer with RS232, LPT

Direct thermal or thermal transfer bar code label & tag printer EasyCoder 301

The Intermec EasyCoder 301 printer is intended for low to medium volume label printing in point-of-use applications - where and when labels are needed. Printer comes loaded with features, which brings you superb product quality for affortable price. Printer configuration is also made easy with the help of built-in barcode reader wand interface. Just scan the needed barcodes from the operation manual and that's how you set up the printer.

EasyCoder 301 key features:

• Affordable. Loaded with features that give value for money.
• Easy to use - designed for non-experienced users.
• TrueType Unicode based, scaleable fonts in local languages. Latin & non-Latin fonts can be downloaded into the printer's Flash memory, or be plugged in using PC cards.
• Small footprint, fits into most work-places. One of the most compact printer of its class, yet large label roll capacity. Easy to move around.
• Rugged. Designed with high-tech reinforced composite materials which are also used for car bumpers, bullet-proof vests and ice hockey rinks.
• Software can be upgraded and downloaded into Flash memory without opening the printer.
• Designed to meet international bar code print quality standards (CEN and ANSI).
• Easy to load labels and ribbons reduces down time and increases productivity.
• Quick-mount print head can easily be replaced by the user.
• Flexible. Prints labels and tags in roll form, or fan-folded. Takes labels with gaps on backing paper, punched holes, black marks and continuous strip.
• Environmentally friendly. Designed with non-hazardous and re-cyclable materials.
• EasySet System - built-in bar code wand interface offers instant printer setting for various papers, ribbons and other printer parameters.
• Basic functions as; Label-taken sensor, direct thermal, thermal transfer, peel-off function, internal rewind of backing paper, for labels, tickets and tags.

Technical specifications:

• Environment
  • Operating Temperature:
    • +5...+40°C (+41°...+104°F)
  • Humidity:
    • 20...80% RH non-condensing
• Interfaces
  • Standard:
    • RS-232, 300...38400 Baud rate
    • Parallel IEEE 1284, bi-directional (Centronics)
    • Bar code wand interface (for fast configration)
• Supported Protocols:
  • Direct Protocol
• Memory:
  • Standard:
    • 1MB Flash memory
    • 512KB DRAM
    • 2x PC-card slot
• Physical Characteristics
  • Length:
    • 350mm (13.8")
  • Height:
    • 170mm (6.7")
  • Width:
    • 236mm (9.3")
  • Weight:
    • 4.7kg (10.4lbs)
• Power
  • Input:
    • 110...120VAC / 220...240VAC
    • 50...60Hz
  • Power consumption:
    • Max 250W
    • Typical 70W
    • Stand-by 30W
    • 4...2A
• Print Specifications
  • Core max Width:
    • Must not protrude outside the web
  • Max Length:
    • Unlimited
  • Min width:
    • 25.4mm (1")
  • Max Label Width:
    • 114mm (4.5")
  • Style:
    • Roll-fed, die-cut, coninuous or fanfold labels, tags or tickets
  • Label Roll Max Diameter:
    • 152mm (6")
  • Label Roll Core:
    • 38mm (1.5") or 76.2mm (3")
  • Ribbon diameter:
    • 60mm (2.3")
  • Resolution:
    • 8 ots/mm (203dpi)
  • Print Speed:
    • 100mm/s or 150mm/s (4"/s or 6"/s) selectable
• Media Type:
  • Prints direct thermal and thermal transfer labels, tickets and tags. Plain paper thermal transfer or thermal sensitive paper.
• Supported Bar Code Symbologies:
  • Incorporates 37 bar code symbologies, including 2-Dimensional codes
• Characters/Fonts:
  • 15 UNICODE scalable fonts are standard. Printing of graphics and symbols is also easy.

Download Intermec EasyCoder 301 series thermal transfer printers installation and operating guide

Download Intermec EasyCoder 301 series thermal transfer printers programmer's guide direct protocol 2.0

Download Intermec EasyCoder 301 series thermal transfer printers spare parts catalogue
