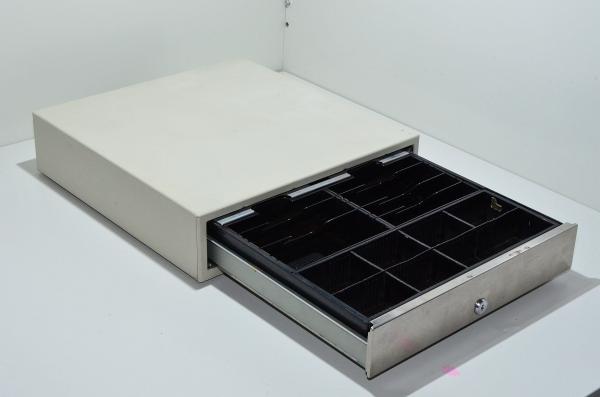

International Cash Drawer IDC SS-103/3S-423 white solenoid operated lockable cash drawer, model 1 (no keys)

Metal cash drawer, which can be encountered nearly everywhere. So this is the tin box from underneath the sales point where the money is stored. Typically this is connected into POS system somewhere (for example at the back of receipt printer) and by programming at the end of the receipt printing some special character which is required by the receipt printer, it will execute cash drawer opening at the end of every session. If you do not want to connect electrical operation into the POS system it is possible to make a simple circuit with power supply and hand or foot operated switch for operating the cash drawer. So in other words you will press the button each time you want to open the box. For those who does not like electricity at all we recommend the opening with key.

Cash box technical details:

• Material:
  • Steel
• Color:
  • White
• Locking:
  • Permanent key locking (opened with a key into a working order)
  • Temporally by pushing the tray shut
• Opening the tray:
  • Electrical use solenoid operated (There is a micro-switch in solenoid vicinity which can be used for informing the POS system of the drawer opening and it's current state.)
  • By turning a key little more further from opened position.
  • During emergencies turning the lever with tool from the bottom hole will release the tray (does not open if the tray is locked with a key)
• Cable length:
  • About 1m (depends on the unit)
  • Cable can be changed fairly easy from inside (requires soldering)
• Drawer fitted internal cash compartment (is included into shipping):
  • 7-part individually removable coin compartment (there is about 10mm high free storage space underneath the coin compartment)
  • 7-part banknote storage compartment
  • Compatible with about 325x360x60mm size internal cash compartments
  • Coin compartment and banknote compartments dividers can be adjusted according to own needs

Download IDC's cash drawers product catalog nr 1

This unit has only one suitable key (key will be shipped with the last compatible cash drawer). Client can be supplied with a picture/outline drawing from the key, if he wants to make the key somewhere. Alternatively one may change the entire lock. Cash drawer will be shipped in open state, so there is no need to start lock-picking.
