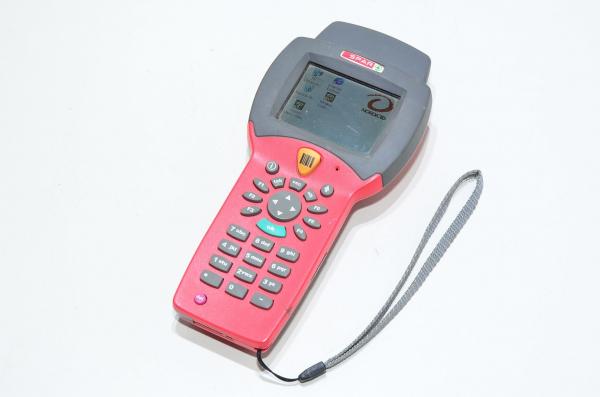

NordicID PiccoLink 2000 red wireless laser barcode reader with color touch screen, Windows CE *new*

Nordic ID PL2000
A powerful tool for a wide range of applications.

The advanced Nordic ID PL2000 combines the attributes of a batch handheld instrument with those of a radio terminal giving the user the best of both worlds. The light-weight handheld barcode reader has a user accessible PCMCIA type II slot for supporting a wide range of compatible PC-cards, for instance a GSM, WLAN or a GPRS card. Nordic ID PL2000 supports any technology that is provided in PC card format, eg. Bluetooth and GPS. One hand for the Nordic ID PL2000, the other one free. In designing of PL2000 special attention has been paid to ergonomics. The device fits snugly in the palm and it can be operated using one hand. All the buttons on the device are easily operated by your thumb and you can have your PL2000 with you all day, as it weighs only 410g. Basically this is a Reinforced PDA with integrated laser barcode reader and PCMCIA II card slot, speaker and mic (+ connector for headset), 8bit color touch screen with stylus and as a cherry for the pie Li-Ion battery for mobility and flexibility (Li-Ion lets you charge whenever you want to)... What else would you really need for warehouse tasks?

This used set contains:

• New PiccoLink 2000 data collecting terminal (includes "SPAR" lens sticker on its face) + Stylus
• Installed Cisco Aironet 350 series WLAN card (or equivalent WLAN card)
• New Li-Ion battery
  • We will not give any other warranties for it (Most likely manufacturer can supply new and fresh batteries upon need)
• User's manual CD

Technical Specifications and Benefits:

• Windows CE .NET 4.2
  • Normal windows look
  • Wide application support and simple to program
• Intel ARM 32bit RISC Processor
  • State of the art processor
  • Low battery load
  • High performance
• Integrated PC card type II slot
  • Can be fitted with GSM, WLAN, GPRS, Bluetooth or GPS card
  • Unit is fitted with Cisco Aironet 350 series WLAN PC card
• 32MB SDRAM
  • Lots of fast memory for user applications
• 32 MB FLASH
  • Permanent, power-loss tolerant memory
• User accessible full size PC-Card type II slot
  • The user can easily extend and modify the device’s capabilities
• 1/4 VGA Touchscreen-Display (320x240 Pixels) with 64.000 colors (8bit color) with LED back light
  • Very sharp
  • Good readability
  • Size suitable for terminal emulation
• Rechargeable 2,3Ah Lithium-Ion battery
  • One working day battery life under normal usage conditions
• Integrated laser barcode scanner
  • No need for external scanning unit
• 27-key user friendly keyboard
  • Low learning curve
  • Fast navigation
• USB operation available via cradle
  • Very fast synchronization with PC
• IrDA port
  • 115 KBps SIR
  • For portable printers, card readers or PC-synchronization
• RS-232 port in base connector, also via docking cradle
  • Available for user applications
• Integrated Microphone and Speaker
  • 2.5 mm jack for optional headset
  • Excellent multimedia possibilities
  • Voice over IP possible with 3rd party software
• Integrated wakeup tilt switch
  • Optional wake-up on touch
• Integrated vibrating alert
  • Optional alert mode for loud back-ground noise environments
• Barcode reader weight approx:
  • 410g with battery
  • 310g with out battery
• Bar code reader dimensions:
  • 210x97x42
• Drop tested from 1,2m (concrete)

We have received an information that this device does not support Java, so if your systems run on Java you will need to tinker up something custom for it.

Download Nordic ID PiccoLink 2000 wireless barcode scanner user manual

Most of these have Spar's software installed into them and with these you can get rid of them.

Download Nordic ID PiccoUSB 2.0.1.zip operating software

Download PL2000 EBOOT 2.3.0.nb0 image

Download PL2000 v2.3.0.bin image

Updating instruction:

1. Check that the docking unit is connected into computer's USB port.
2. Remove barcode reader's network card (pull to remove).
3. Place the barcode reader into docking station.
4. Reset device with the button which is located in the hole for stylus (for example use a paper clip) and press the yellow scan button.
5. Run PiccoUSB2
6. From barcode reader maintenance menu -> Download img -> OK
7. First run EBOOT 2.3.0.nb0 image.
8. When device restarts return to point 4.
9. From barcode reader maintenance menu -> Download img -> OK
10. Load PL2000 v2.3.0.bin image (do not compress if it suggest to do that)
11. When device starts up go into point 4.
12. Select maintenance menu -> Erase Flash -> OK
13. Barcode reader restarts again.

Device's first boot will take some time, no need to panic even though the device is stuck in Kernel-boot. If it takes too long time then remove battery, restart the device, drink three cups of coffee and device works.
